Details

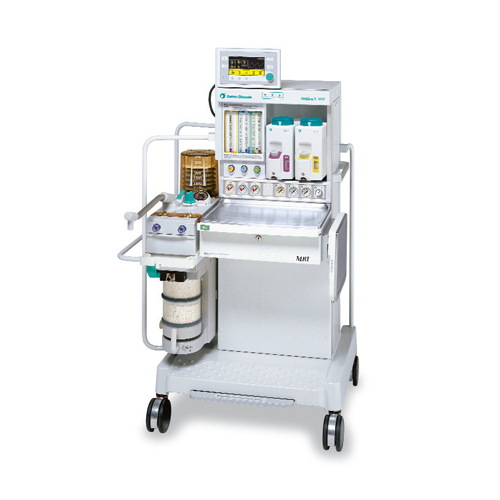

GE Datex Ohmeda Aestiva 5 MRI Features Validated for use in MRI environments up to 300 Gauss, active shielded 1.5T and 3T magnets Physically integrated magnetic field strength monitor (Gauss Alarm) Low overall height Features facilitate use in both the MRI suite and surgical OR Volume Mode, Pressure Control Mode, Pressure Support (PSVPro), Synchronized Intermittent Mandatory Ventilation (SIMV), electronic PEEP Tidal volume compensation Two key presses to total standby: end case One motion from mechanical to manual mode Cardiac bypass case mode Innovative patient breathing system Eight integrated machine hoses/cables Autoclavable and latex-free Responsive location of common gas outlet Improved low flow/reduced life cycle costs GE Datex Ohmeda Aestiva 5 MRI Specifications Dimensions Height: 152 cm/59.8 in Width: 97.5 cm/38.4 in Depth: 83 cm/32.7 in Weight: Approximately 136 kg/300 lb Ventilation Operating Modes Volume Control Pressure Control Synchronized Intermittent Mandatory Ventilation (SIMV) (optional) Pressure Support (PSVPro) with Apnea Backup ventilation (optional) Ventilator (VT) parameter ranges Anesthetic Agent Delivery Anesthetic agent delivery: Tec 5, Tec 7 Number of positions: 2 Mounting: Tool-free installation Selectatec® manifold interlocks and isolates vaporizers Electrical specifications Current Leakage 120V: < 300μA 220V: < 500μA Power and Battery Back-Up Power Input USA/Canada/Mexico: 120 Vac, 60 Hz, 10A Euro: 220-240 Vac, 50 Hz, 6A Italy/France/Belgium: 230 Vac, 50 Hz, 6A Japan: 100 Vac, 50 or 60 Hz, 10A UK: 240 Vac, 50 Hz, 6A Backup Power Demonstrated battery backup time under typical operating conditions is 45 minutes when fully charged Battery Type Internal rechargeable sealed lead acid Power Cord Length: 5 m/16.4 ft | Rating: 10A @ 250 Vac or 15A @ 120 Vac Communication Port Serial Interphase Isolated RS-232C compatible port
