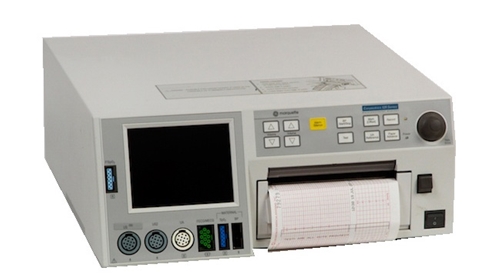

Corometrics 120 Series Features The Corometrics 120 monitor interactive training CD provides a step-by-step review of the disassembly and reassembly process. From the introduction of the parts down to the removal of the front bezel power switch, this interactive CD gives a comprehensive approach to servicing the 120 series. Comprehensive maternal/fetal monitor provides the ability to address every monitoring need for both the mother and the fetus Model 126: Dual ultrasound, FECG and Uterine Activity Model 128: Maternal NIBP and SpO2, in addition to Model 126 features Model 129: Maternal 3-lead selectable ECG in addition to Model 128 features Corometrics 120 Series Specifications Dimensions Height: 6.7”, 17 cm Width: 16.4”, 41.9 cm Depth: 17.3”, 43.9 cm Weight: 24 lbs (10.9 kg) approximate Ultrasound Mode Technique: pulse Doppler with autocorrelation processing Transducer type: 9-crystal Pulse reception frequency: 4 kHz single ultrasound mode, 2 kHz dual ultrasound mode Pulse duration: 92 µs Transmitter frequency: 1.151 MHz Intensity: <5mW/cm² Heart rate counting range: 50-210 BPM Leakage current: <10 µA at 120-240 VAC, isolated by transducer FECG Mode Technique: peak detecting, beat-to-beat cardiotachometer Heart rate counting range: 30-240 BPM Heart rate resolution: ±1BPM Artifact elimination: switch selectable, ±25 BPM artifact rejection Countable input signal range: 15 µV to 2mV peak-to-peak Offset voltage tolerance (differential): ±300 mVDC maximum Maximum common mode voltage: 20V peak-to-peak Preamplifier bandwidth: 1-100 Hz Common mode rejection: balanced > 120 dB at mains frequency, with patient cable, unbalanced = 5 kΩ RA or LA: > 110 dB at mains frequency Input equivalent noise: < 10µV peak-to-peak Input impedance: differential > 10 MΩ, common mode > 20MΩ Mains frequency rejection: > 40 dB Leakage current: < 60µA at 254 VAC, electrically isolated. Isolation, mains-to-patient: > 4 kVAC Leg plate tester jack: simulated r-wave at 120 ± 1 BPM Fetal Alarms (for ultrasound or FECG modes) Audio: alternating 1.5 second chimes (773 Hz and 523 Hz) Visual: flashing heart rate numeric Limits: user selectable high and low fetal heart rate Technical: signal quality Tachycardia response time: 5 minutes at 100% limit violation Bradycardia response time: 30 seconds at 100% limit violation Signal quality response time: 100% signal loss – 1.25 minutes, 70% signal loss – 5 minutes, 65% signal loss – 10 minutes Fetal Pulse Oximeter Mode Technique: spectrophotometry and plethysmography Saturation range: 10-100% Saturation accuracy: reproducibility is one standard deviation = 4.7%. Nominally, 67 of the measurements across the population will be within ± standard deviation Wavelengths: red: 735 µM, nominal; infrared: 890µM, nominal Response time: user-selectable: slow and fast averaging modes Transmitter frequency: 1.151 mHz Uterine Activity Mode Range: 0-100 mmHg strain gauge, 0-100 relative units tocotransducer Resolution: 1 mmHg stain gauge, 1 relative unit tocotransducer Bandwidth: dc to 0.5 Hz strain gauge and tocotransducer Excitation voltage: strain gauge +4.0 VDC Maternal BP Mode Technique: oscillometric. Blood pressure range: 20-255 mmHg (2.7 – 34 kPa) Pulse rate range: 40-240 BPM Blood pressure accuracy: ±5 mmHg with a standard deviation no greater than 8 mmHg Pulse rate accuracy: ±2 BPM or ± 2% , whichever is greater Display/record: systolic, diastolic, and mean pressure; pulse rate Maternal Pulse Oximeter Mode Saturation range: 0-100% Pulse rate range: 30-250 BPM Saturation accuracy: %SpO2 ± 1 SD: 70-100% ±2 digits, 50-69% ± 3 digits. 0-49% unspecified Pulse rate accuracy: ±3BPM MECG Mode Leads: II, III, and I Heart rate counting range: 30-240 BPM Heart rate resolution: ± BPM Heart rate averaging: 1 sec Maximum common mode voltage: 20 Vp-p Preamplifier bandwidth: 0.6 to 40 Hz Common mode rejection: balanced > 80 dB at mains frequency, with patient cable; unbalanced 5 k RA or LA > 50 dB at mains frequency Input impedance: differential > 2.5 MΩ; common mode > 10 MΩ Mains frequency rejection: >40 dB Leakage current: < 60 µA at 254 VAC, with cable, electrically isolated Alarms: Audio: alternating 1.5 seconds chimes, Visual: flashing heart rate numeric or message, Limits: user-selectable high and low maternal heart rate, technical: leads off Power Requirements Line voltage: 100/120/220/230/240 VAC Line frequency: 50/60 Hz Power consumption: 100W/0.4 A maximum
