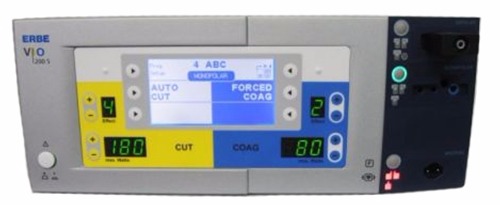

ERBE VIO 200S Features The VIO 200S, offers various cutting and coagulation modes with defined effect levels to provide the physician flexibility in interventional applications. The Erbe VIO 200S also has improved voltage regulation and automatic power dosing, with as much as needed or as little as possible – millisecond to millisecond. Power Peak System PPS™ - for optimal support during the initial cutting stage, especially low contact impedance situations, allowing the electrode to start in contact with target tissue. Effect settings for each mode. AUTO START and AUTO STOP features in BIPOLAR SOFT mode. Up to 9 storable programs. User-Friendly interface (FocusView - reduces the visual information to the essentials, simplifying the operation if the unit). Audio and Visual Error Recognition System. ERBE VIO 200S Specifications Dimensions Width x Height x Depth: 410 x 165 x 380 mm Weight: 9.5 kg Power Output Maximum CUT Output: 200 watt at 500 ohm Maximum COAG Output: up to 120 watt Safety System: NESSY Frequency: 350 kHz Mains Connection Power frequency: 50 / 60 Hz Power input during stand-by: 40 Watts Power input during max RF output: 500 watt / 920 VA System voltage: 100-120 / 220-240 V Potential equalization connection: Yes Standards Classification acc. to 93/42 EWG: IIb Protection category acc. to EN 60 601-1: I Type acc. to EN 60 601-1: CF Category acc. to UMDNS: 11-490
