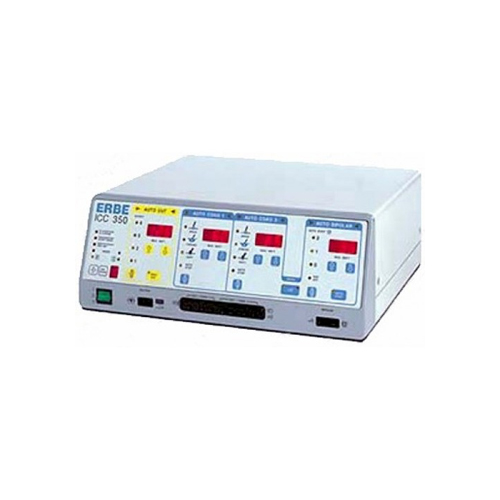

ERBE Erbotom ICC 350 Features The top-of-the-line ERBOTOM ICC 350 heads ERBE's family of units for HF surgery. They've given it one-of-a-kind functionality for all-around use, with the features and abilities developed in close teamwork with leading surgeons from many different medical disciplines. The ICC 350 has received world-wide attention and recognition; it is a step forward from conventional surgical methods and opens the way for new ones. General surgery Dermatology Endoscopy Gastroenterology Vascular Surgery Genecology Neurosurgery Plastic Surgery Oral surgery ERBE Erbotom ICC 350 Specifications Dimensions Dimensions (W x H x D): 410 × 152 × 368 mm Weight: 10.0 kg Electrical Rated power voltage: 240V/230V/115V/110V/100V± 10% Rated power frequency: 50/60 Hz Power current: 4.0 A at 230 - 240 V/8.0 A at 100-115 V Power consumption in Standby mode: 25 watts Power consumption at max. HF power: 620 watts 920 VA Current consumption in Standby mode: 150 mA at 230 - 240V/300 mA at 100-115 V Potential equalization terminal: Yes Power fuses: 2 slow burn, 4 A at 230 - 240 V/8 A at 100-115 V Cutting HF power adjustment: With up/down increment keys Form of HF voltage: Sine-shaped Nominal frequency of HF voltage: 330 kHz Cutting quality: 4 coagulation effects, selectable by key Constancy of the coagulation effects: Automatically regulated Support for initial incision and cutting: PPS, PowerPeakSystem Monopolar AUTO CUT: With automatic voltage control Monopolar HIGH CUT: with automatic arc control Nominal HF output: 300 watts at 500 ohms Peak HF power with PPS: 400 watts at 500 ohms Monopolar ENDO CUT: 200 watts at max 200 ohms BIPOLAR AUTO CUT: With automatic voltage control Nominal HF output: 100 watts at 500 ohms Coagulation HF power adjustment: With up/down increment keys Monopolar SOFT COAG Form of HF current: Sine-shaped Nominal frequency of HF voltage: 300 kHz Nominal HF output: 120 watts at 125 ohms End of coagulation: with Pedal or AUTO STOP Monopolar FORCED COAG Form of HF current: Pulse-modulated Nominal frequency of HF voltage: 1 MHz Nominal HF output: 120 atts at 350 ohms Monopolar SPRAY COAG Form of HF current: Pulse-modulated Nominal frequency of HF voltage: 1 MHz Nominal HF output: 120 watts at 500 ohms Biopolar COAG Form of HF current: Sine-shaped Nominal frequency of HF voltage: 330 kHz Nominal HF output: 120 watts at 125 ohms Start of coagulation: By foot pedal or AUTO START End of coagulation: By foot pedal or AUTO STOP Safety Precautions Safety class: I, corresponds to DIN IEC 601-1 Type: CF, corresponds to DIN IEC 601-1 Software check of LF leakage current, Icritical: 0.05mA (only with capacitive grounding) Software check of HF leakage current, Icritical: 150 mA/300MA NESSY: Neutral electrode Safety System Neutral electrode switching: Switch-selectable capacitively grounded or with floating power Self-Check: Includes all safety-related subassemblies
