Details

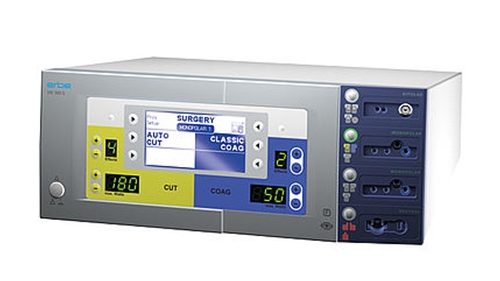

ERBE VIO 300S Features The user interface concept of the VIO 300S allows the operating physician and his team to quickly and directly access the program parameters. The power output and the effects can be easily changed directly and at the highest level of the interface using the up and down keys. Automatic output dosage for all regulative technologies. Precise power output adjusted to the individual indication. New and improved CUT and COAG functions. Variable configuration with socket modules. Simple to operate due to FocusView. Display-supported neutral electrode safety system NESSY provides interactive assistance when positioning the return electrode. Assignment of the footswitch: the display makes it possible to assign the footswitch or even just one footswitch pedal to the output socket of choice. ERBE VIO 300S Specifications Dimensions Width x Height x Depth: 410 x 165 x 380 mm Weight: 8.8 kg Power Output Maximum CUT output: 300 watt at 500 ohm Maximum COAG output: up to 200 watt Safety system: NESSY Frequency: 350 kHz Mains Connections Power frequency: 50 / 60 Hz Power input during stand-by: 40 Watts Power input during max RF output: 500 watt / 920 VA System voltage: 100-120 / 220-240 Volt Potential equalization connection: Yes Standards Classification acc. to 93/42 EWG: IIb Protection category acc. to EN 60 601-1: I Type acc. to EN 60 601-1: CF
