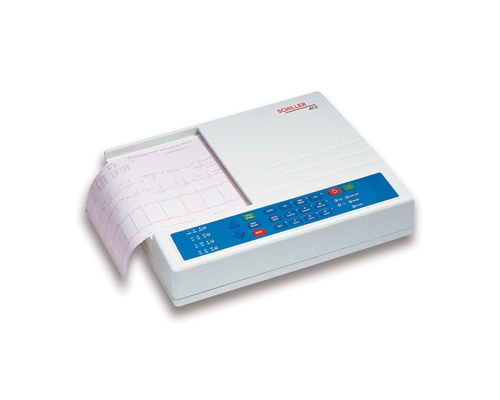

Schiller CARDIOVIT AT-2 612-Channel Resting EKG Machine
Details
The AT-2 is a low cost ECG system with performance features previously only available in high priced systems. The AT-2 provides A4 reports within seconds - at the touch of a button. Features and Benefits 6/12-channel representation of all 12 simultaneously acquired leads. Automatic and manual mode. Full size 8" x 11" reports (A4). Integrated rechargeable battery lasts for up to 400 recordings. Single button operation. Built-in thermal printer. Computerised ECG interpretation program is included. CE labelled. Meets or exceeds U.S. and international quality standards. Portable at only 4.8 kg / 11 lbs.
Additional Information
Materials Included AT-2 Unit Patient Lead Cable Pack of Electrodes Pack of Paper Pack of Clips Power Cable Manual
Tech Specs
Technical Specifications Dimensions: 400 mm x 330 mm x 101 mm Power supply requirements: 220 – 240 V (nominal), 50/60 Hz or 110 – 115 V (nominal), 50/60 Hz independent operation with built-in rechargeable battery, LED indicator for mains and battery, built-in charger unit. Power consumption: Max. 28 VA. Battery charging time: 15 hrs. from a completely discharged battery, 3 hrs. to 60 % capacity. Battery capacity: 2 hrs of normal use. Leads: Standard / Cabrera. Patient input circuitry: Fully floating and isolated, defibrillation protected (only with original SCHILLER patient cable). Frequency range of digital recorder: 0 Hz to > 150 Hz (IEC/AHA). Myogram (muscle tremor) filter: 25 Hz (40 dB/dec) or 35 Hz (20 dB/dec), programmable. Line frequency filter: Distortion-free suppression of superimposed. Control panel: Pad keys, LED indicators.
Shipping Information
Please Inquire
Warranty & Returns
1-year warranty.
