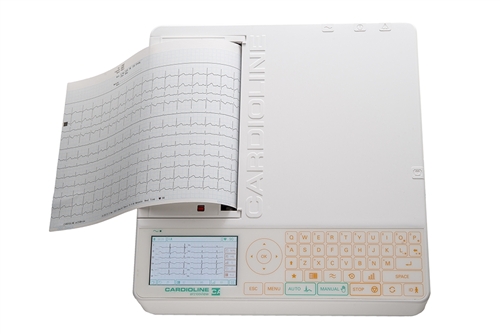

Cardioline ar2100view Portable ECG Machine w/ Interpretation
Details
The ar2100view is a multi-channel electrocardiograph equipped with 210 mm printing system (A4/Letter), 12 channel color graphic TFT display and soft-touch extended alphanumeric keyboard. The machine integrates ECG parameter measurement and wireless data transmission via optional Bluetooth interface allowing tests to be recorded onto the computer. Features and Benefits Meets newest FAA standards for EKG report submission! (FAA Class I Physicals) Records ECG in automatic, manual and pre-programmed modes Prints the ECG on paper in the formats D3+1 / D3+3 / D6x2 / D12 channels; Bluetooth computer connection with Cube ECG to save examinations and archive them (Archive), or record an examination in real time directly from the PC (PC-ECG) Visualize the ECG signal on its graphic display in the formats 3, 6, 12 channels Sort tests according to clock, date and alphanumeric keyboard to manage user and patient data
Additional Information
Materials Included Materials Included Patient Cable 1 Roll & 1 Pack of ECG Paper 100 Electrodes Clips Battery Power Cord Manual
Tech Specs
Technical Specifications Main Supply: Internal A/C power 90-264 V 47/63Hz Battery: Rechargeable battery pack NiMH 10x1.2 Vdc; 2000 mAh Leads: 12 Standard or Cabrera leads Input Dynamics: ± 300 mV @ 0 Hz.± 10 mV in pass band Common Mode Rejection: >94 dB with balanced impedance Frequency Response: 0.05 - 190 Hz (-3dB) Signal Memory: 10 s for each lead in atuomatic mode Recording Sensitivity: Manual: 2.5 – 5 – 10 – 20 mm/mV ± 5% Writing System: Thermal printer, 8 dot/mm Print Channels: 3 / 6 / 12 / D3+1 / D3+3 / D6x2 / D12 Thermo-Sensitive Paper: Z-Fold pack: page 210x280mm *200FF gridded Pacemaker Recognition: Recognises pulse in accordance with current IEC standards Filters: Mains interference: modifi ed notch 50–60 Hz Muscular Noise: 3 cut-off frequencies: 20, 25 and 35 Hz Anti-Drift: 0.5 Hz high pass, linear phase, always on. Keyboard: Soft-touch with 47 keys Display: Visualization of 12 ECG channels, functional parameters, HR (30- 300) , colour graphic 480x272 pixel LCD TFT Standby Time: Internal battery: 80 min with 6 channel printing Recharging Time: Internal battery : 10hours 100% Dimensions: 325 x 80 x 345 mm (length x height x depth) Weight: 8.1 lbs.
Shipping Information
Please Inquire
Warranty & Returns
3-Year Warranty.
