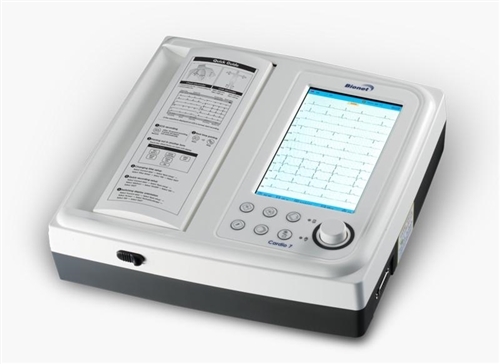

The Cardio7 is a reliable, interpretive, resting ECG. It features a large 7” TFT LCD touch screen with WiFi. It supports USB flash drive, a QWERTY keyboard, JPEG/PDF file format, one channel long-term recording and storage of up to 200 ECGs. It stores and shows the recent 5-minute full channel ECG in order to print out the missed abnormal ECG waveforms. It prints in multiple formats, including 12, 6 and 3 channel reports. Features and Benefits Meets newest FAA standards for EKG report submission! (FAA Class I Physicals) Maximized Ease of Use Cardio7 combines menu-guided touch screen technology with a convenient rotary key and buttons to maximize ease of use. USB barcode reader and keyboard can be attached through USB ports. Built-In Memory and Supports USB Flash Drive Store up to 200 ECGs in internal flash memory and saved ECGs can be converted to various standard file formats like JPG, PDF, XML, MFER and DCM and exported to external USB flash drive. EMR Support The Cardio7 sends ECGs to PC by using BMS-Plus windows based PC software through LAN or WiFi. USB flash drive can be used to move ECGs stored in Cardio7 to PC Included DICOM 3.0 Protocol to retrieve work lists from PACS and Saves ECG images to PACS Clinically Important Simultaneous 12 Lead Acquisition Cardio7 acquires 10 full seconds of ECG data simultaneously from 10 leads to produce an accurate 12 channel printout with analysis in less than 60 seconds. Full Disclosure Function Cardio7 stores and shows the recent 5-minute full channel ECG in order to print out the missed abnormal ECG waveforms. Enhanced Interpretation The ECG printout offers detailed interpretation information in text/guide/vector report formats to aid in diagnosis. Provides 12 channel, 6 channel + 1 rhythm, 3 channel + 1 rhythm, and 3 channel + 3 rhythm report. Supports pediatric interpretation. Long-term Recording & Automatic Arrhythmia Detection Cardio7 provides one channel long-term recording like 1, 3, 5, 10 minutes with arrhythmia detection and HRV (Heart Rate Variability) analysis. A4 Full Size Paper Cardio7 produces full size A4 printouts in 1, 3, 6 and 12 channel formats. Full size print-outs improve readability and make it easier for filing in the patient chart. ECG Filing System BMS Plus BMS Plus is a software program that enables you to interface Cardio7 to Windows based computers through LAN or WiFi. The ECG data from Cardio7 is saved in either Bionet’s proprietary file format (.ecg), or JPEG or PDF. The JPEG file format ensures compatibility with most EMR packages. BMS-Plus displays real-time ECG data on-screen, instantly performs a full set of measurements and offers diagnostic aid. BMS-Plus can eliminate the need for costly thermal paper by printing a variety of comprehensive reports on standard printer/copier paper.
Materials Included Cardio7 Unit 10-Lead ECG Patient Cable (10) Alligator Clips Electrodes Medi-Graph Paper Hospital Grade Power Cord USB Flash Drive with BMS-Plus Software Installed USB WiFi Dongle Rechargeable Battery Diagnostics Guide Book User Manual
Technical Specifications ECG Leads: 12 Channel Simultaneous ECG and acquisition Dimensions Width: 300 mm Height: 299 mm Depth: 123 mm Record Auto Rhythm Disclosure Arrhthymia Detect Recording Channel: 3 channels + 1 rhythm, 3 channels + 3 rhythm, 6 channels + 1 rhythm, 12 channels, 1 channel long time (1 min, 3 min, 5 min, 10 min) and special reports (text, guide, vector) Sensitivity: 2.5, 5, 10, 20, auto (I~aVF: 10, V1~V6: 5) mm/mV Printing Speed: 5, 12.5, 25, 50, 100 mm/s Sampling Rate: 2,000 samples per second Filters AC (50/60Hz, - 20dB or better) Muscle (25~35Hz, -3dB or better) Base line drift (0.05, 0.1, 0.2 Hz, -3dB or better) Low pass filter: off, 40Hz, 100Hz, 150 Hz Display 7" color TFT wide display (800 x 480) Monitor Display HR ID Date AC or Battery State Sensitivity Speed Number of Saved Data Printing form Rhythm lead User Interface Touchscreen Hot Key Barcode Scanner USB Keyboard Patient Data ID Name Age Sex Height Weight Smoke Race Basic Measurement Heart Rate PR QRS QT/QTC P-R-T Axis Recorder Thermal Print Head, Thermal Roll Paper Report Papers (Width x Length) A4: 215 mm (8.5") x 297 mm (11.7") Letter: 215 mm (8.5") x 280 mm (11") Resolution Vertical: 8 Dot/mm Horizontal: 16 Dot/mm Electrical Internal Noise: 20uV (p-p) max Input Impedance: More than 50M Input Voltage Range: ±5mV CMRR: +105dB DC offset voltage: >= ±400mV Patient Leakage Current: < 10 uA Frequency response: 0.05~150Hz within -3 db Isolated, defibrillation and ESU protected Signal Quality Control: Pacemaker pulse detection lead fault detection, signal saturation detection ECG Data Storage: Internal storage for 200 ECGs and external USB flash drive Power Input: 100 - 240 VAC, 2-1 A, 50/60 Hz Output: 60 VA max External Link: LAN, 2 USB Port File format: PDF, JPG, XML, MFER, DCM Battery Type: Replaceable and rechargeable Lithium ion Battery Capacity: 6 hours of continuous operation without printing or Approx. 3 hours of 200 ECG printouts Communication RS232 LAN WiFi USB Flash Drive USB Barcode Scanner Safety Conformity: Class 1, Type CF, CE, FDA, KFDA, CFDA, NCC Environment Operating Humidity: 30~85% Operating Temperature: 10° ~ 40° C
Please Inquire
4-Year Warranty
