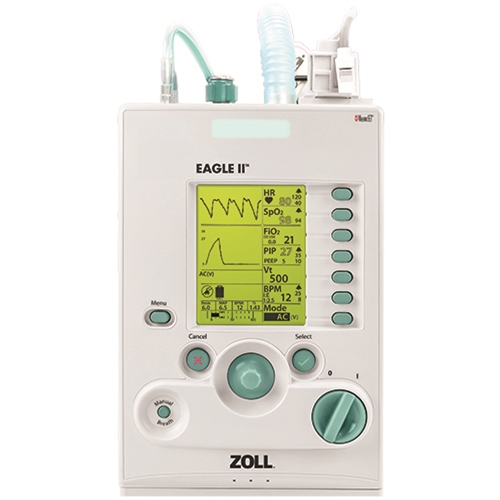

Zoll Eagle II Features The Zoll Eagle II portable ventilator is the ideal solution for ICUs, emergency departments, and intra-hospital transport of infants (≥5 kg), pediatric patients, and adults. Weighing less than 10 lbs., it can be mounted on the wall or on a roll stand or bed. In addition to AC mode, the Eagle II offers SIMV and CPAP (NPPV/PPV) modes with pressure support. Designed for the ICU, emergency department and intra-hospital transport Supports infants ≥ 5kg, pediatric patients, and adults 10-hour battery run-time; rapidly recharges in 2 hours Smart Help display MRI conditional system available Zoll Eagle II Specifications Dimensions Height: 12.5 In (31.8 cm) Width: 8 In (20.3 cm) Depth: 4.5 In (11.4 cm) Weight: 9.7 lbs. (4.4 kg) Operating Modes AC, SIMV with or without pressure support, and CPAP (NPPV/PPV) with or without pressure support. Breath Target Volume and pressure. General Flow Rate: 0 to 100 LPM @ 40 cm H2O (3922 Pa) Breath Rate: 1 to 60 BPM Tidal Volume: 50 to 1500 ml ATPD +/- 10% of setting Inspiratory Time: 0.3 to 3.0 seconds I:E Ratio: 1:1 to 1:99.9 FiO2: 21 to 100% +/- 3% of full scale +/- 10% of setting PEEP: 0 to 25 cm H2O (0 to 2451 Pa) Peak Inspiratory Pressure (PIP): 10 to 80 cm H2O (980 to 7845 Pa) Trigger Sensitivity: -0.5 to -6.0 cm H2O (-49 to -588 Pa) Oxygen Input Pressure: 55 psig (-25%; + 20%) (379170 Pa) Battery Operating Time: Internal battery 10 hours Power Operating Voltages: 100 to 240 VAC (50/60 Hz) or 12.5 to 28.0 VDC
