Details

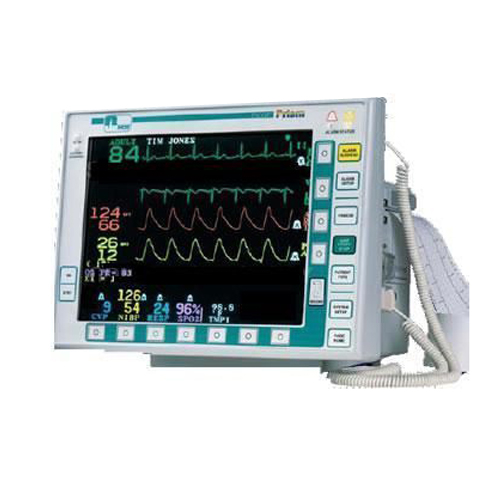

Invivo MDE Prism Features Large color screen. The portable MDE Escort Prism SE has a battery and is easily transportable for any situation.This Escort Prism SE is the newer style of the popular Escort family, with BUILT-IN parameters including ecg/resp, SPO2, NIBP, temp, as well as Turbo-temp and a printer. The large color monitor screen is great and can be adjusted for optimal viewing. This unit is also available with the 900 MHz transceiver, model 20011V, which is to be used with the Vision Central Station system. ECG, NIBP, Masimo SET or Nellcor SpO2, Respiration 2 Continuous Temperatures: SureTemp Oral Predictive Temperature Up to 3 Invasive Pressures Cardiac Output with Hemodynamic Calculations 10.4 inch Color LCD display with large numerics Up to 5 waveforms Optional Dual Waveform Recorder 3.5 Hour Battery Life Optional Telemetry Receiver AutoNet Wireless Network with Adaptive Pathways HIS/CIS Interface w/HL7 Invivo MDE Prism Specifications ECG Range: 10 to 300 BPM Accuracy: ± 2% or ± 2 BPM Sweep Speed: 12.5, 25, 50 mm/sec selectable High Alarm Limit Range: 50 to 250 BPM in 5 BPM steps – ADULT. 60 to 255 BPM in 5 BPM steps – PED/NEO Low Alarm Limit Range: 20 to 150 BPM in 5 BPM steps – ADULT. 20 to 150 BPM in 5 BPM steps – PED/NEO Bandwidth: 0.5 to 40 Hz (monitor); 0.05 to 100 Hz (diagnostic) Leads: 3 lead: I, II, or III selectable. 5 lead, dual vector: I, II, or III, and V selectable Sensitivity: 0.25 to 3 mV/cm selectable (12 levels) Pacer Rejection: 0.1 to 2 msec; 2 to 700 mV Heart Rate Source: ECG, Pleth, IBP Defibrillation Tolerance: 400 joule with 50 ohm series lead impedance Connector: Standard 6 pin MS Isolation: Full electrical isolation Respiration Range: 4 to 200 BPM Accuracy: ± 2% or ± 2 BPM Lead: RA to LA Sensitivity: 0.25 to 3 ohm/cm selectable High Alarm Limit Range: 30 to 150, OFF – Adult. 50 to 200, OFF – PED/NEO Low Alarm Limit Range: 5 to 50, OFF – Adult. 5 to 80, OFF – PED/NEO Apnea Delay Alarms: 10, 15, 20, 30, 40 seconds, and OFF – ADULT. 10, 15, 20 seconds, and OFF – PED/NEO Sweep Speed: 1.56, 6.25, 12.5, 25 mm/sec selectable Respiration Rate Source: ETCO2 or Leads CVA Rejection: Rejects most cardiovascular coincidence
