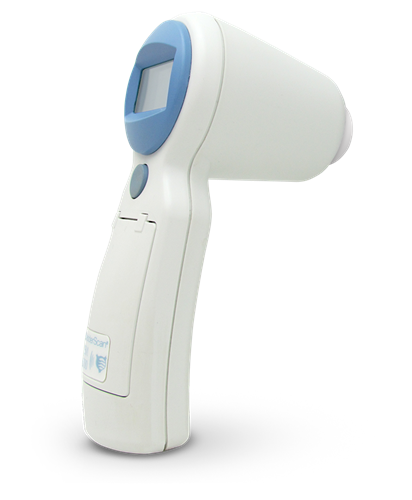

More Verathon BladderScan BVI 6100 Pictures Verathon BladderScan BVI 6100 - Soma Technology, Inc.BladderScan BVI 6100 - Soma Technology, Inc. Verathon BladderScan BVI 6100 Features The BladderScan BVI 6100 bladder volume instrument, with VMODE® technology, is a portable 3D ultrasound instrument that quickly, accurately, and noninvasively measures urinary bladder volume and post-void residual (PVR) in adult patients to help health care providers diagnose, manage, and treat urinary outflow dysfunction. Helps assess urinary retention and postoperative urinary retention (POUR) Helps prevent unnecessary catheterization Helps reduce rates of catheter-associated urinary tract infection (CAUTI) Helps differentiate between types of incontinence to determine appropriate care Helps monitor postoperative recovery Helps improve efficiency of healthcare professionals by reducing costs and saving staff time Verathon BladderScan BVI 6100 Specifications General Bladder volume range: 0 ‑ 999 ml Accuracy: The following accuracy specification assumes usage per instructions, scanning a Verathon® tissue equivalent phantom Bladder Volume: ± (15% + 15 ml) Scan time: Less than 5 seconds Weight: Less than 11 oz (309 grams) Power: 3.7 v lithium-ion rechargeable battery Display: Liquid crystal Water resistance: Rated at IPX1 (indicates drip-proof, a higher than ordinary level of protection from drips, leaks, and spills) Operating Conditions Temperature: 50º–104ºF (10°–40°C) Relative humidity: 30–75% non‑condensing Atmospheric pressure range: 70–106 kPa Storage Conditions Storage: Indoor Ambient temperature range: 14°–122ºF (‑10°–50ºC) Atmospheric pressure range: 50–106 kPa Relative humidity: 20–95% non‑condensing
