Details

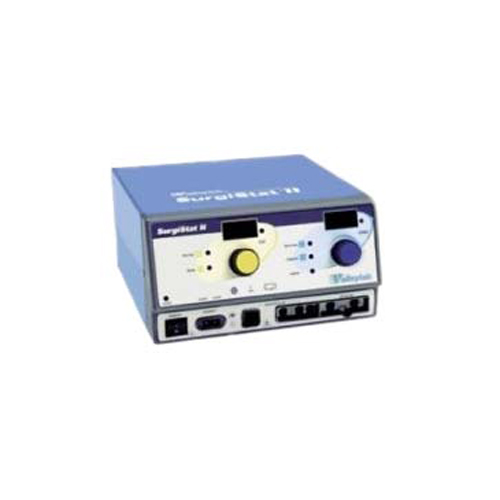

Valleylab Surgistat II Features For general electrosurgery needs in the office, clinic, or emergency room, the Valleylab SurgiStat™ II generator provides exceptional performance, reliability, and safety benefits in a compact, easy to use unit. Easy and quick to set up; compact and light Saves time with automatic access to previously used power settings and modes Provides precise surgical effect with power control dials Performs most common office-based electrosurgical procedures Provides ability to change power settings while activating the generator Includes both monopolar and bipolar outputs Accepts preferred accessories: standard 3-pin pencil, most standard footswitching devices (with adapter), and standard Valleylab monopolar footswitch (optional) standard 2-pin bipolar footswitching devices Manufactured to the highest standards of quality in electrosurgical technology Ensures consistent clinical performance over a variety of procedures Increased patient safety with a return electrode contact quality monitoring system (RECQMS). The RECQMS system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected Valleylab Surgistat II Specifications Dimensions Height: 14 cm (5.5 in) Width: 26 cm (10.25 in) Depth: 25.4 (10 in) Weight: <6.5kg (<14 lbs) RF Leakage Bipolar <39 Arms Monopolar <150 Arms Input Power 110-120 Volts at 60 Hz PER = 86 PER (Power Efficiency Rating) is the measure of an electrosurgical generator’s ability to accurately deliver the selected power into a wide range of tissue types. Controls and Indicators Mode Selection: Separate pushbuttons select modes (Cut or Blend, Desiccate, Fulgurate, or Bipolor) PowerSetting: Dials adjust power in increments of 1 watt Audible Tones: A continuous tone indicates activation; volume control is on the back panel. A dual tone, which is not adjustable, indicates an alarm condition; for example, compromised patient return electrode contact Receptacles Front Panel: RECQMS patient return electrode receptacle (RECQMS system requires a split plate patient return electrode) Receptacle for standard footswitching devices with adapters Receptacle for standard 2-pin bipolar footswitching devices Rear Panel Receptacle for standard Valleylab monopolar footswitch
