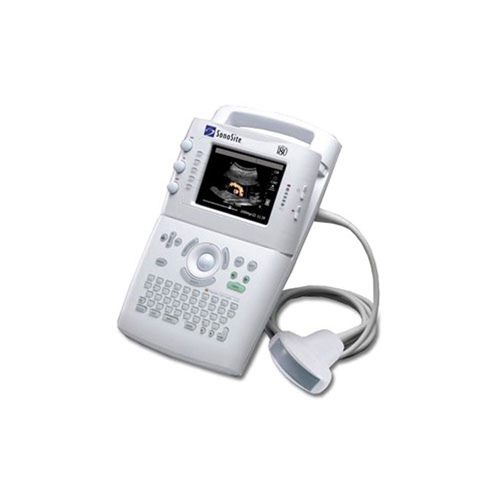

More Sonosite 180 and Sonosite 180 Plus Pictures SonoSite 180 Plus Ultrasound - Soma Technology, Inc.180 Plus - Soma Technology, Inc.SonoSite 180 Plus - Soma Technology, Inc. Sonosite 180 and Sonosite 180 Plus Applications Abdominal Vascular Breast Obstetrical Pediatric/Neonatal /li> Intraoperative procedures Interventional procedures Cardiac Small parts Gynecological Musculoskeletal Sonosite 180 and Sonosite 180 Plus Specifications: Dimensions Weight: 5.7 lbs (2.6 kg) with one transducer attached Dimensions: 2.5" L x 7.6" W x 13.3" H (6.35 cm L x 19.3 cm W x 33.8 cm H) Battery life: up to 2 hours Imaging Modes 2D Zoom Narrow imaging sector /li> Color power Doppler Pulsed wave Doppler (option) Directional color power Doppler Continuous wave Doppler (option) M-Mode Tissue Harmonic Imaging (option) Transducers Lightweight with rapid, pinless connection C60/5-2: 60-mm broadband (5-2 MHz) curved array for general-purpose abdominal, obstetric and gynecologic applications ICT/7-4: 11-mm broadband (7-4 MHz) intracavitary array for obstetric gynecologic applications. C15/4-2: 15-mm broadband (4-2 MHz) array for transthoracic and abdominal imaging L25/10-5: 25-mm broadband (10-5 MHz) linear array for vascular access applications. L38/10-5: 38-mm broadband (10-5 MHz) linear array for breast, small parts, interventional, musculoskeletal and vascular imaging.Biopsy guide available. C11/7-4: 11-mm broadband (7-4 MHz) curved array for neonatal head, pediatric and neonatal abdomen, vascular access and assessment and pediatric cardiac imaging HST/10-5: 25-mm broadband (10-5 MHz) linear array for intraoperative vascular, and superficial vascular imaging C8/8-5: 8-mm broadband (8-5 MHz) intracavitary array for prostate and indocavitity exams. Stainless steel. User Interface Controls: 2D, power Doppler, pulsed wave Doppler, continuous wave Doppler, M-mode, near gain, far gain, overall gain, save, print, freeze, cine review, text/picto, select, measure, optimize, depth, zoom, patient Narrow Imaging Sector feature on 2D and power Doppler modes User-defined labels - Integrated 5" (12.7 cm) TFT color Liquid Crystal Display with brightness and contrast controls Integrated trackball for navigation Alpha-numeric keyboard System optimization presets for different patient body types System Parameters System dynamic range: approximately 140 dB Frame rate: up to 100 frames/second Image Storage and Cine Storage: internal 119 image memory (maximum) for off-line printing and review Cine: image retained for frame-by-frame viewing PC Direct Connectivity: connect directly to a PC using a cable link from a serial port (RS-232 or USB option) to a PC with SiteLink™ Image Manager software to download high resolution bitmap images Clinical Analysis Package OB calculations with report package via standard tables Cardiac calculation
