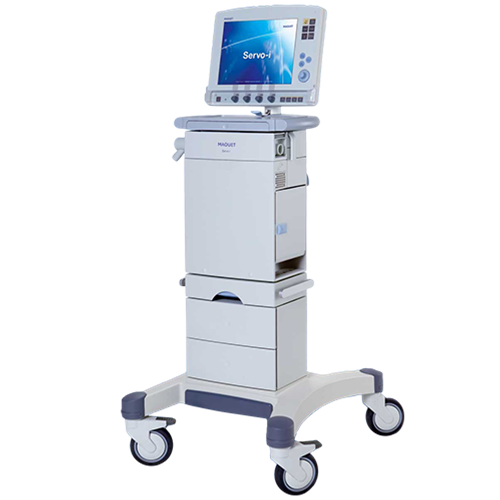

More Maquet Servo-i Pictures Maquet Servo I - Soma Technology, Inc.Maquet Servo I Ventilator - Soma Technology, Inc. Siemens Maquet Servo-i Features The Siemens Servo-i is available in three main configurations; Infant, Adult, and Universal. These main configurations are as standard equipped with a number of ventilation modes suitable for each patient category. Further ventilation modes can be installed via software Option Upgrades. The Siemens Maquet Servo-i can be divided into two main units; The User Interface and the Patient Unit. Enables treatment of all patient categories. Transportation with no loss of treatment quality within and between hospitals. Allows for investigation of different treatment options like Open Lung Tool and Automode. Invasive ventilation. Non-invasive ventilation with leakage compensation. CO2 Analyzer for end tidal carbon dioxide measurement that may give important insight into the efficiency of the ventilation. Y sensor measurement, for neonatal/pediatric and adult patients. Enables measurement of pressure and flow as close to the patient’s airway as possible. Nasal CPAP. Heliox - gives a more laminar flow that reduces work of breathing. Stress Index - will monitor hyperinflation or repeated alveolar collapse, thus allowing the identification of injurious ventilation (VILI).7 Ventilation Record Card to facilitate research work and presentations. Maquet ventilator accessories and consumables that are fully tested and designed to work optimally with SERVO ventilators. Siemens Maquet Servo-i Specifications Dimensions Height: 51.8 In (131.5 cm) Width: 22 In (56 cm) Depth: 25.2 In (64 cm) Weight: 44.1 lbs (20 kg) General Method of triggering: Flow, pressure and Edi (optional) Max. operating pressure: Approximately 115 cmH2O Bias flow: 2 l/min Inspiratory Channel Pressure drop: Max. 6 cmH2O at a flow of 1 l/s Internal compressible factor: Max. 0.1 ml/cmH2O Gas delivery system: Microprocessor controlled valve Inspiratory flow range: Adult: 0 to 3.3 l/s Infant: 0 to 0.55 l/s Expiratory Channel Pressure drop: Max. 3 cmH2O at a flow of 1 l/s Internal compressible factor: Max. 0.1 ml/cmH2O PEEP regulation: Microprocessor controlled valve Rise Time, Expiratory Flow Measurement: <12 ms for 10 – 90 % response at flow of 0.05 – 3.2 l/s Expiratory flow range: 0 to 3.2 l/s Screen Type: TFT-LCD module Size: 31 cm (12.1”) diagonal Viewing area: 246.0 x 184.5 mm Operating Conditions Operating temperature: +10 to +40ºC Relative humidity: 15 to 95% non-condensing Atmospheric pressure: 660 to 1060 hPa Lowest pressure in breathing system: –400 cmH2O Power Supply Power supply, automatic range selection 100 – 120 V AC ±10% 50 – 60 Hz 220 – 240 V AC ±10% 50 – 60 Hz Plug-in battery module Battery backup: Two battery modules are delivered with the ventilator. 50 – 60 Hz 220 – 240 V AC ±10% 50 – 60 Hz Battery capacity: Rechargable, 12 V, 3.5 Ah each Recharge time: Approximately 3 h/battery Battery backup time: At least 3 h, when using six batteries. External 12 V DC: 12.0 V – 15.0 V DC, 10 A Max power consumption At 100 – 120 V: 2 A, 190 VA, 140 W At 220 – 240 V: 1 A, 190 VA, 140 W
