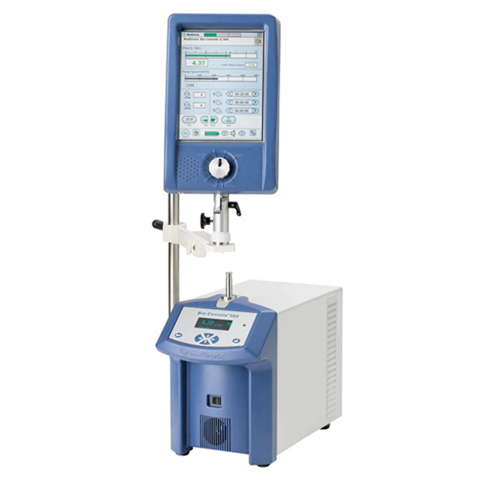

Medtronic Biomedicus 560 Centrifugal Pump Features The Model 560 Bio-Console® Pump Speed Controller offers control and monitoring for the Bio-Pump® Centrifugal Blood Pump. Ergonomic design features uncluttered control panel and highly visible graphics Compatible with most heart-lung consoles RPM control knob alerts operator that a low-flow condition is approaching. Total system includes Bio-Console 560 Pump Speed Controller, Flow Transducer, Model 150 Emergency Handcrank, 540T External Drive Unit, Bio Cal® 370 Blood Temperature Control Module, PBS Cabinet, Adjustable Arm Assembly, Sechrist® Air/Oxygen Mixer, Regulator/Hose Set and ACT PLUS® Color-coded status displays text messages Three timers with countdown or elapsed time. Two independently controlled level sensors communicate with pump controller Flow display includes cardiac index flow target calculation User-selectable pump stop/coast responses Arterial line auto-clamp system helps prevent backflow Updated electronic architecture provides additional functional enhancements. Utilizes remote pump drive for optimum placement Medtronic Biomedicus 560 Centrifugal Pump Specifications Dimensions: User interface Overall Size: 22.18 cm (8.7 in) wide by 34.5 cm (13.6 in) long Screen Size: 26.41 cm (10.4 in) diagonal Weight: 4.26 kg (9.4 lb) Dimensions: Base Unit Size: 31.88 cm (12.55 in) high by 22.83 cm (8.99 in) wide by 43.02 cm (16.9 in) long Weight: 17.19 kg (37.9 lb) AC Power 100 VAC, 50-60 Hz, 3 amps 110-120 VAC, 50-60 Hz, 3 amps 220-240 VAC, 50-60 Hz, 1.5 amps External Pump Drive Motor Brushless DC (non-arcing) Internal Batteries Type: Two, series connected, 12 VDC lead-acid gel; rechargeable Discharge Time: Refer to Appendix C in product manual: Battery Longevity Recharge Time: 18 hours to 90% capacity; 24 hours to 100% capacity System Limits Flow: -9.99 to +9.99 L/min +/- (5% + 50 mL) RPM: 0 to 4500 RPM Pressure: -300 to +999 mm Hg +/- (5% + 5 mm Hg) Operating Limits Temperature: +18° to +33°C, +64° to +92°F Humidity: 10% - 95%, noncondensing Storage Limits Temperature: -40° to +66°C, -40° to +150°F Humidity: 10% - 95%, noncondensing Output Signal Digital: RS 232 Interface: flow, RPM, pressure, alarm status Baud Rate: 1200 to 19200
