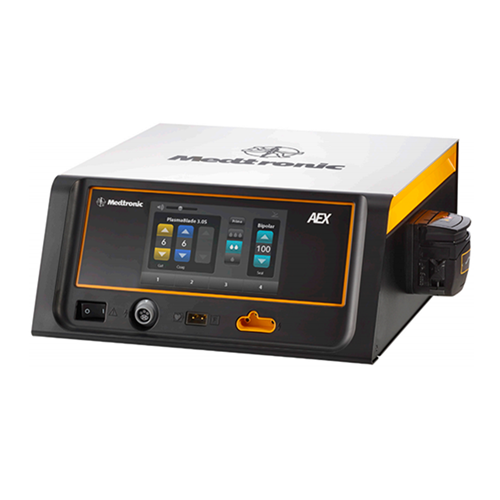

Medtronic AEX Generator Features The AEX™ Generator is one component of the AEX™ Surgery System. The Generator provides radio frequency (RF) energy to disposable Monopolar and Bipolar electrosurgical handpieces. The AEX™ Generator accepts a Patient Return Electrode for monopolar applications and includes a rotary peristaltic pump for simultaneous delivery of saline for a hemostatic sealing. Handpiece control Handpiece with footswitch control Simultaneous activation of 2 handpieces Device default settings recognition Monopolar and Bipolar outputs Connection to Patient Return Electrode Color LCD to prompt user for input and to display informational, error, and fault messages Audio feedback of activation and alarm tones Medtronic AEX Generator Specifications Physical Dimensions Width: 14.5 In (36.8 cm) Height: 6.5 In (16.5 cm) Length: 17 In (16.5 cm) Weight: <20 lbs (9 kg) Display Diagonal: 7 In (17.8 cm) Height: 3.5 In (8.9 cm) Width: 6 In (15.2 cm Environmental Operating Conditions Temperature: 50℉ - 104℉ (10℃ - 40℃) Humidity: 15% - 85% Non-condensing Relative Humidity Storage Conditions Temperature: -4℉ - 149℉ (-20℃ - 65℃) Humidity: 0% - 85% Non-condensing Relative Humidity Leakage Current Low Frequency (50/60Hz) Earth leakage current in normal condition <5 mA Earth leakage current in single-fault condition <10 mA Enclosure (touch) leakage current in normal condition <100 μA Enclosure (touch) leakage current in single fault condition <500 μA Patient leakage current in normal condition <10 μA Patient leakage current in single fault condition <50 μA High Frequency (RF) Monopolar RF leakage current <150 mA Bipolar RF Leakage Current <100 mA
