Details

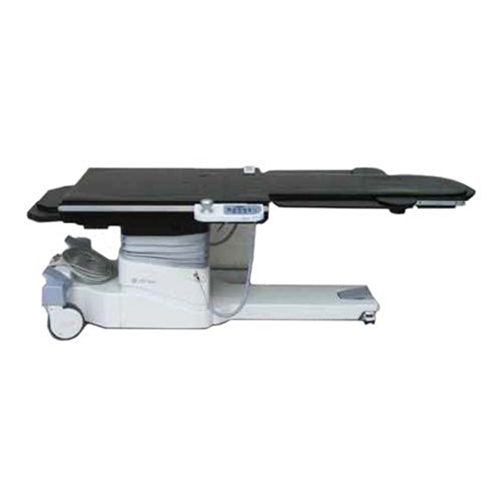

GE OEC Apix CV Features Efficient Low Attenuation Design Lighter Easy Transport Easy Maintenance Tilt, Roll and Float 30" Table Elevation 84" Head-to-Toe Imaging GE OEC Apix CV Specifications Electrical Power Requirements: 120V @60 Hz 10 Amps, 240V @ 50 Hz 5 Amps Weights and Forces Overall Weight: 850 lbs. (385 kg) Patient Load Capacity 400 lbs. (180 kg) Dimensions Table Top Length (Retracted): 90” (228 cm) Table Top Width: 30” (81 cm) Dimension of Image able Area: 18” x 84” (45 cm x 213 cm) Movements Lateral Travel: +/-6” (15 cm) Longitudinal Travel: 48” (122 cm) Trendelenburg Travel: +/-20° Lowest Table Height: 30” (76 cm) Highest Table Height: 42” (106 cm) Lateral Roll/Tilt: +/-20° General Table Top Composition: Carbon Fiber Table Top Radiolucency: .55mm AL Equivalent Table Pad Radiolucency: .50mm AL Equivalent ( 1/2 pad std. ) Approvals and Certifications: CE, VDE, CSA Approvals Pending Accessories Included 1/2” Low Attenuation Table Pad Single C.F. Arm Board with Pad C.F. Tabletop Accessory Plate Restraint Strap Wristlets Control Panel Control Panel Covers (1 case of 25) Hand Control Accessories Available Dual C.F. Arm Board with pad 1” Extra-Comfort Table Pad Under-table mounted Radiation Shield I.V. Pole Anesthesia Screen Holder
