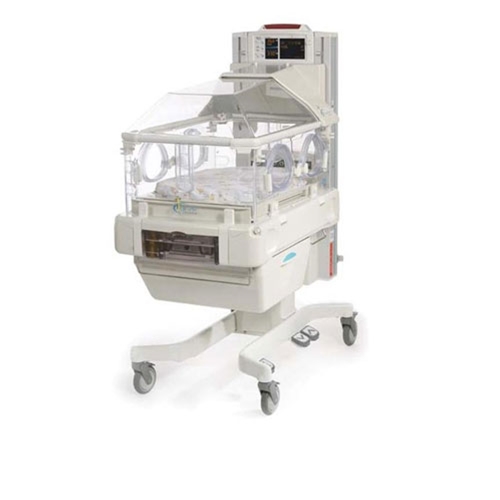

GE Giraffe OmniBed
Details
More GE Giraffe OmniBed Pictures GE Giraffe OmniBed Incubator - Soma Technology, Inc.GE Giraffe OmniBed - Soma Technology, Inc.GE Giraffe - Soma Technology, Inc. GE Giraffe OmniBed Incubator Features The Giraffe OmniBed is a richly-featured neonatal microenvironment that combines the thermal advantages of a double-walled incubator with the access advantages of an open bed radiant warmer. Conversion between an incubator and an open bed warmer happens in seconds with a touch of a button. In either open or closed bed operation, the OmniBed provides precise microprocessor controlled thermal support. Stress on the infant, staff, and family members is reduced by eliminating the need to transfer the baby between incubators and warmers. Less equipment is now required for caregiving, cleaning, service, and storage. The OmniBed pioneered developmentally appropriate features including the patented Baby Susan rotating mattress and internal bed tilt. The GE Giraffe OmniBed combines two traditional infant care products in one. A full- featured incubator and a radiant warmer in one. Protects from heat loss while the bi-di- rectional maintains thermal stability. Infant receives uniform heat regardless of position. Incubator with an Air Curtain to protect from heat loss Radiant warmer that provides consistent heat in any position A consistent and controlled thermal environment Improved access to patient A less stressful environment for the patient and family No need to transfer patient from incubator to infant warmer 360 degree rotating patient mattress Drop down removable doors and rotating bed provide easy access In-Bed scale Philips Heartstart FRX Specifications Dimensions Maximum height: Canopy down: 70 in (178 cm) Canopy up: 94 in (239 cm) Minimum height: Canopy down: 60 in (152 cm) Canopy up: 82.3 in (209 cm) Footprint: 45 in x 26 in (114 cm x 66 cm) Weight: 328.5 lb. (149kg) Floor to mattress height: 33 in to 43 in (84 cm to 109 cm) Mattress size: 25.5 in x 19.2 in (64.8 cm x 48.8 cm) Accessdoorsize: 9 in x 31 in (23 cm x 78 cm) Drawersize: 19 in x 20 in (48 cm x 50 cm) Drawer depth: 8 in (20 cm) Physical Characteristics Full Color Touch Display: 10.4 in (26.4cm) LCD Mattress tilt angle: 12, &continuously variable Micro filter: 0.5µ -99.8% efficiency (3M FiltreteTM) Data collection: RS-232 Tubing access ports: 8 User Control Settings Baby (servo) temperature control: 35-37.5°C in 0.1° increments (Regulates baby temperature in both open and closed bed modes) Manual radiant power control: 0-100% in 5% increments Air temperature control: 20-39°C in 0.1° increments Servo humidity control range: 30-95% relative humidity in 5% increments In-Bed Scale Performance Accuracy: ±0.35oz (10g) Range: 0.66lbs. to 17.6lb. (300g to 8kg) Servo Oxygen Control Performance Control range: 21% to 65% Display range: 16 to 70% Rise Time: < 10 minutes from 5% below set point in Whisper Quiet Mode after open door Recovery from opening porthole: ≤ 5 minutes from closing porthole to 5% below set point Alarms: ±3% from set point Accuracy 5% Humidifier Performance Recovery time: < 15 minutes (typical) Recovery to 75% RH with 39°C air set temperature Operating time between refills: > 12 hours @ 65% RH control setting in a 25°C/50% RH ambient Reservoir capacity: 1000 ml Servo Control Accuracy: ±10% for settings up to 85%: minimum 75% for settings > 85% Ramp-up time: ≤ 50 minutes - Time to reach 75% RH with a 39°C control temp from cold start in 25° C, 50% RH room. Operating Environment Temperature: 20° to 30°C Humidity: 5 to 85% RH (non-condensing) Air Velocity: Up to 0.3m/sec Water Ingress: IPXO Storage/Shipping Information Temperature: -25° to 60°C Humidity: ≤ 85% RH (non-condensing) Pressure: 50-106k Pa Service and Maintenance Battery: 8.4V NiMH Recommended Calibration/Preventative Maintenance Period: Annually Limited Warranty: One year parts and service *International specification, not available in the USA
Additional Information
General Information About Incubators What is an incubator? Used mainly to keep a baby’s core temperature stable at 37 degrees Celsius. Also humidifies the air Can add extra oxygen. Physiology Core temperature of the body needs to be kept at a constant temperature of 37 degrees Celsius If temperature goes too high or too low - organs can be damaged Premature babies have undeveloped nervous systems and also lack the energy to regulate their own temperature – need for an incubator Small babies can be given small amount of food for growing. Need for use of all of their energy for growth rather than wasting it on keeping warm - so sometimes incubator is used to help them grow faster Parameters Controlled Temperature Oxygen Humidity levels Indications of Use Prematurity Congenital feebleness - Infants of fair size are sometimes born weak and with poor resistance, shown by subnormal temperature, slight cyanosis, tendency to edema Edema - Premature infants are not seldom subject to a general edema, beginning at the feet. Incubator is the quickest way to relieve the condition Cyanosis, with or without edema, due to feeble circulation, is very common with small infants, and sometimes present with those at full term. Warm, moistened, oxygenated air of incubator does wonders in these cases Subnormal temperature After difficult operative deliveries, the baby is often in a condition of shock leading to asphyxia. Violent efforts to revive it should be limited to a minimum, and the infant placed as soon as possible in the incubator Working with an Incubator The temperature in the incubator is increased/decreased by a heater element below the mattress in the chamber Motor driven fan near the heater draws in fresh air through a filter and blows it past the heater, warming the air Air is directed up through slots into the area above the mattress and circulated around Air temperature is monitored by temperature sensors (Air Temperature Sensor) and is adjusted by controlling the current to the heater Incubator can also monitor the baby’s skin temperature by using a skin temperature probe (Patient Probe), which is stuck onto the skin User can either set the incubator to control the temperature of the air or to control the temperature of the baby’s skin (servo control mode) Supplementary oxygen can be taken in by an oxygen inlet connection where it is mixed with the fresh air through the filter Humidity can be increased by the use of water baths (passive humidification) or by dripping water on a heated element (active humidification) Baby is cared for through special access doors called arm ports. Types of Incubator Regular Incubators Where there is minimal mobility Used in hospitals Clinics Transport Incubators An advance infant health care equipment for the care of infant patients Typically include an incubator provided with a wheeled base which is equipped with life support and monitoring instrumentation, oxygen tanks and other emergency care supplies Used for moving ill or injured infants to hospital and have proven valuable in sustaining the lives of infants during transport Used in Ambulances, Air Planes etc. for transport of infant
