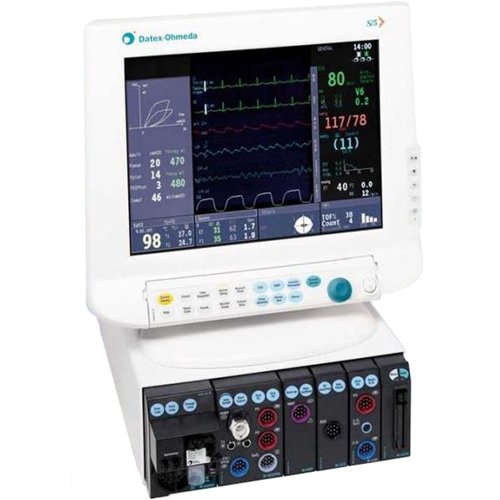

GE Datex Ohmeda S/5 Anesthesia Monitor Features The Datex-Ohmeda S/5 Monitor gives you the time and freedom to monitor your patient effectively. It offers all you need for effortless patient monitoring in the OR and beyond - a full range of monitoring parameters, intuitive use, workstation configurability, transparent device integration, and data transfer. Central unit and displays are physically separate components 4 display options with integrated monitor controls: 15” or 17” high-resolution color video display at 10.4” or 15” flat panel color LCD display User configurable display layout and colors Support for up to 8 Waveforms on screen Support for user configurable second and third screen with different waveforms and numerical information Anesthesia dedicated Alarm System Alarms display and adjustment page 10-minute graphical mini trends referenced to set alarm limits Automatic alarm limits functions 6 user configurable modes and special Cardiac Bypass Mode 24 hour Numerical and Graphical trends Split screen capability to show ST, Spirometry Loop, EEG, EP, or MiniTrends permanently 4 user-configurable Graphical and Numerical trends GE Datex Ohmeda S/5 Anesthesia Monitor Specifications General ECG, NIBP, SpO2, Temp, 2-IBP, Rec, CO2 and 5 Agent. Color Screen Dimensions Height: 13.4 inches (340 mm) Width: 13.2 inches (335 mm) Depth: 8.1 inches (205 mm) Weight (without modules): 24.2 lbs (11 kg) Power Rated voltage range and frequencies: 100 to 240v ±10%, 50/60 Hz Maximum power consumption: 140 VA Protection class: Class I Grounding: Hospital grade Display Display size: 12.1 in diagonal Display type: Active matrix color TFT LCD Display resolution: SVGA resolution, 800 x 600 Number of traces: up to 8 Display layout and colors: User-configurable. Integrated Command Board with direct function keys, menu keys and ComWheel° for selections and adjustments in menus Battery Type: Built-in NiMH battery (2 pcs) Capacity: Up to 1.5 h typical on full charge at 23°C Recharging: When connected to mains power Charging time: 10 hours to full capacity Battery operation alarm Indicator: Battery bar displayed on the screen Trends Graphical: All parameters, selectable times between 30 min to 72 h Numerical: Continuously measured parameters sampled every 5 minutes, NIBP and PCWP values updated after each measurement. Also, marker triggers numerical trend updating Trend cursor: In both graphical and numerical trends
