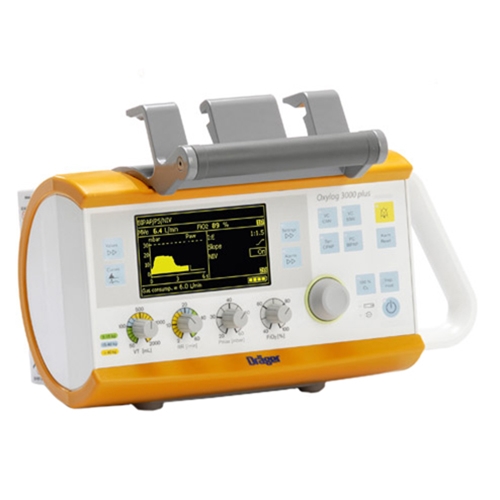

Drager Oxylog 3000 Plus Features The Drager Oxylog 3000 Plus emergency and transport ventilator offers high ventilation performance with features such as AutoFlow integrated capnography and non-invasive ventilation. The compact and robust Oxylog 3000 Plus helps you transport your patients safely and provides feedback on correctness of intubation and ventilation effectiveness. High confidence during transport. Wide range of ventilation modes and AutoFlow. Integrated capnography. Ready for pediatric patients. Automatic altitude compensation (BTPS). Intuitive user interface. Advanced data export functionality. Drager Oxylog 3000 Plus Specifications Dimensions Height: 7.2 In (18.4 cm) Width: 11.4 In (29 cm) Depth: 6.9 In (17.5 cm) Weight (Including internal battery): 12.8 lbs (5.8 kg) Display Technology: Electro-luminescence (EL) Resolution: 240 x 128 Dimensions: 4.3 x 2.2 In (10.8 x 5.6 cm) Wireless Network Standards: IEEE 802.11g, Wi-Fi compatible Frequency Range: 2.412 to 2.462GHz Ventilation Modes VC-CMV, VC-AC, VC-SIMV, SpnCPAP, PC-BIPAP Ventilation Settings Pressure support: in the ventilation modes VCSIMV, PCBIPAP and SpnCPAP Apnoea ventilation: in the ventilation mode SpnCPAP AutoFlow (optional): in the ventilation modes VC-CMV, VCAC and VC-SIMV NIV: in the ventilation modes: SpnCPAP (/PS), PC-BIPAP (/PS), VC-CMV /AF, VC-AC /AF and VC-SIMV/AF Ventilation Respiratory Rate 2 to 60 /min (VC-SIMV, PC-BIPAP) 5 to 60 /min (VC-CMV, VC-AC) 12 to 60 /min for apnoea ventilation General Tidal volume: VT 0.05 to 2.0 L; BTPS Ti / I:E: I:E or Ti configurable, for all ventilation modes Ventilation Time Tatio I:E: 1:100 to 50:1 Inspiration Time Ti: 0.2 to 10 s Inspiratory Pressure Pinsp: PEEP +3 to +55 mbar O2 Concentration: 40 to 100 Vol.% PEEP / CPAP: 0 to 20 mbar Trigger Sensitivity (Flow Trigger): 1 to 15 L/min PressureSsupport ΔPsupp: 0 to 35 mbar (relative to PEEP) Slope (Pressure Rise Time): Slow, standard, fast
