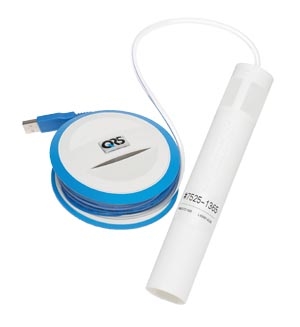

QRS Diagnostics Orbit Portable Spirometer
Details
The Orbit is a full-function portable spirometer which connects directly to your Personal Computer, laptop or tablet. This spirometer simplifies testing by eliminating calibration and sterilization with disposable nose-clips and pre-calibrated mouthpieces. Features and Benefits Standards - The Orbit provides effective diagnostic tests and meets the following Standards: American Thoracic Society (ATS/ERS) 2005 Standard British Thoracic Society (BTS) Standard National Institute for Health & Clinical Excellence (NICE) Guidelines Lung Age Calculation - Lung age is calculated for patients ages 20-84. It is equal to the predicted FEV1 that matches the patient’s actual FEV1. Lung age may differ based on the predicted equation chosen. Patented, Pre-Calibrated Mouthpiece - With the Orbit spirometer system, everything the patient touches is thrown away. No sterilization or calibration is necessary, saving time for nurses, therapists and physicians. No Batteries Required - The Orbit draws its power from the PC it is connected to by USB port. Calibration not required
Additional Information
Materials Included Orbit Portable Spirometer (2) QRS Pre-Calibrated Mouthpieces (2) Pressure Tubes (5) Nose Clips Office Medic Software User Manual
Tech Specs
Technical Specifications Weight: 0.5 lbs. Height: 4.3" x 3.7" x 1.7" Range (BTPS): Flow: ±14 liters/second Volume: 0.5-8 liters Accuracy (BTPS): Flow: ±5% of indication or ±200 ml/sec, whichever is greater for FEF 25-75 and ±10% of indication or ±300 ml/s whichever is greater for PEF Volume: ±3% of indication or ±50 ml, whichever is greater for FVC and FEV1; ±10% of indication or ±15 L/min, whichever is greater for MVV Precision (BTPS): Flow: 5% of indication or 150 ml/sec, whichever is greater for PEF Volume: 3% of indication or 50 ml, whichever is greater for FVC and FEV1 Calibration: ATS 3-speed or standard calibration check Predicted Normals: Adult: Crapo, Cherniack, Morris, Knudson 1983, Roberts, NHANES III, ECC/ERS/Quanjer Pediatric: HSU, Knudson 1983, Polgar, Warwick, NHANES III, Zapletal, Wang, Quanjer Measured Parameters: FVC, FEV0.5, FEV1, FEV6, FEV3, FEV1/FEV6, FEV1/FVC, FEV3/FVC, PEFR, PEFT, FEF25%, FEF50%, FEF75%, FEF25-75%, FIVC, FIV0.5, FIV1, FIV3, FIV1/FIVC, FIV3/FIVC, PIFR, FIF50%, FIF25-75%, FIF.2-1.2, FVC/FIVC, Extrapolated Volume, EOTV, FET, MVV, RR, MTV, SVC Tests Performed: FVC, Pre/Post Testing, Flow Volume Loop, MVV, SVC Measuring Time: FVC: 60 seconds SVC: 60 seconds MVV:15 seconds Power Supply:5 Vdc ±5% 100 mA from the host PC USB Port Operating Conditions: Temperature: 15-40°C Humidity: 10-90% (non-condensing) Atmospheric Pressure: 700-1060 hPa Storage Options Temperature: 15-50°C Humidity: 90% Max (non-condensing) Atmospheric Pressure: 700-1060 hPa
Shipping Information
Please Inquire
Warranty & Returns
3-Year Warranty
