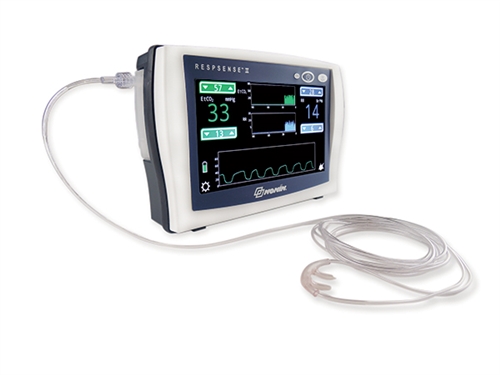

Nonin RespSense™ II Capnograph / CO2 Monitor
Details
The RespSense™ II WIDESCREEN™ capnograph offers Nonin Medical’s sidestream EtCO2 technology for a wide range of clinical settings for both intubated and non-intubated patients. Easy-to-use, accurate and cost-effective, RespSense™ II is perfect for patients in and outside of the hospital, including procedural sedation, resuscitation, EMS transport, sleep labs and homecare. Features and Benefits Meets rigorous ISO requirements for EMS transport 1.5-hour trending of EtCO2 and respiration rate Easy-to-use, large (7"/17 cm), color touchscreen display 36-hour internal memory with USB port Adjustable alarm volume Configurable selections for language, units of measurement and alarms
Additional Information
Materials Included RespSense™ II Unit (3) Adult CO2 Sampling Nasal Cannula (1) Straight Sampling Line (1) Straight T Connector (1) Power Supply (1) User Manual
Tech Specs
Technical Specifications Dimensions Width: 7.9" (200 mm) Depth: 2" (50 mm) Height: 5.3" (135 mm) Weight: 1.9 lbs (865 grams) Power Data Battery Charger: 100 - 240 VAC, 50 - 60 Hz Power Consumption: 3.6 W with battery operation, 9 W with power supply Input: 12 VDC, 1.5 A Operation Working Temperature: 32° to 104° (0° to 40°C) Humidity: 15 - 93% (non-condensing) Atmospheric Pressure: 540 - 795 mmHg (720 - 1060 hPa) Storage Storage Temperature: -32° to 104° (-40° to 70°C) Humidity: Up to 93% (non-condensing) Atmospheric Pressure: Up to 4 atmospheres (83 - 3038 mmHg/110 - 405 hPa) Pump Pump Flow: 75 ml/min Flow Accuracy: ± 15 ml/min Battery Data Type: Lithium Ion Internal Battery, Rechargeable Battery Capacity: Approximately 5 hours Charging Time: Approximately 9 hours or 2 hours for each hours of use Capnography Measurement Data Respiration Range: 0-99 Respirations/min Respiration Accuracy: 3-50 respirations/min ± 2 51-60 respirations/min ± 3 EtCO2/CO2 Range: 0-99 mmHg, or 0 - 13.2 kPa EtCO2/CO2 Accuracy: ± 0.2 kPa /± 2 mmHg, ± 8% of reading (EtCO2/CO2 reading reaches its steady state accuracy 10 minutes after power up at room temeperature) Update Frequency: Once every breath ("NO BREATH" Alarm after 30 seconds) Trend Length: 1.5 hours
Shipping Information
Please Inquire
Warranty & Returns
3-Year Warranty
