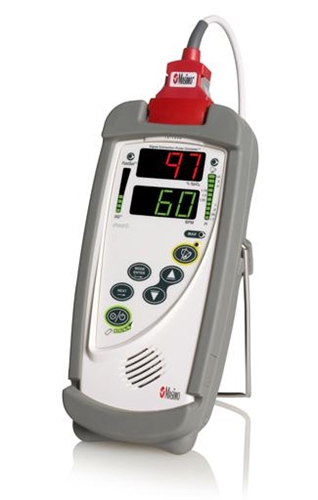

Masimo Rad-5 Handheld Pulse Oximeter
Details
A fully-featured hand-held pulse oximeter with the accuracy and reliability of Masimo SET, perfect for both continuous monitoring and spot-check applications. Features and Benefits Masimo SET® technology is scientifically and clinically proven to provide accurate pulse oximetry measurements during motion and low perfusion Lightweight, convenient handheld device with a long battery life—over 30 hours on 4 AA batteries User configurable power up default settings Sleep Mode allows clinicians to disable audio tones and LEDs Up to 72 hours of trending memory Perfusion Index (PI) indicates arterial pulse signal strength and may be used as a diagnostic tool during low perfusion Signal I.Q.® (SIQ) bar for signal identification and quality indication during motion and low signal to noise situations FastSat® tracks rapid changes in arterial O2 with unmatched fidelity SmartTone™ beeps in sync with pulse, even under patient motion conditions Sensitivity options: APOD®, Normal, and MAX Audible and visual alarms for High/Low Saturation, Pulse Rate, Sensor Off and Low Battery. (Alarms can be configurable) Protective Boots are available in a choice of 7 Colors
Additional Information
Materials Included Rad-5 Handheld Pulse Oximeter Unit (1) Adult Reusable Sensor (1) Sensor Cable (1) Protective Boot (4) Batteries User Manual
Tech Specs
Technical Specifications Dimensions: 6.2” x 3.0” x 1.4” (15.8 cm x 7.6 cm x 3.6 cm) Weight: 0.70 lbs Trending: Provides up to 72 hours of trending at 2 second resolution. Output to PC running Masimo TrendComTM Utility Modes Averaging Mode: 2, 4, 8,10, 12, 14 or 16 seconds Sensitivity: APOD, Normal and Maximum Alarms Audible and visual alarms for high and low saturation and pulse rate (SpO2 range 1% - 100%, pulse rate range 25 - 240 bpm) Sensor condition, system failure and low battery alarms High Priority: 799 Hz tone, 5 pulse burst, pulse spacing: 0.250s, 0.250s, 0.500s, 0.250s, repeat time: 10s Low Priority: 432 Hz tone, 3 pulses, repeat time: 5s Alarm Volume: High Priority: 75 dB (max), Low Priority: 75 dB (max) Display/Indiciations Data Display: % SpO2 Pulse Rate Perfusion Index FastSat Status Alarm Silenced Status Signal IQ/Pleth Bar Battery Status Max Display Type: LED Measurement Range SpO2: 1 – 100% Pulse Rate: 25 – 240 (bpm) Perfusion: 0.02% – 20% Saturation Accuracy Saturation: 70% to 100% No Motion: Adults, Pediatrics, Neonates: ±3 digits Motion Adults, Pediatrics: ±2 digits Neonates: ±3 digits Low Perfusion Adults, Pediatrics: ±2 digits Neonates: ±3 digits Pulse Rate Accuracy Pulse Rate: 25 – 240 bpm No Motion: Adults, Pediatrics, Neonates: ±3 digits Motion: Adults, Pediatrics, Neonates: ±5 digits Low Perfusion Adults, Pediatrics, Neonates: ±3 digits Resolution: Saturation (%SpO2): 1% Pulse Rate (bpm): 1 bpm Power: Battery Type: AA Akaline Battery Capacity: Over 30 Hours Environmental Operating Temperature: 32°F to 122°F (0°C to 50°C) Storage Temperature: -40°F to 158°F (-40°C to 70°C) Operating Humidity: 5% to 95%, non-condensing Operating Altitude: 500 mbar to 1060 mbar pressure -1000 ft to 18,000 ft (-304 m to 5,486 m)
Shipping Information
Please Inquire
Warranty & Returns
1-Year Warranty
