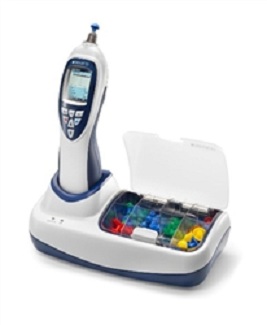

easyTymp Handheld Screening Tympanometer
Details
The easyTymp Handheld Screening Tympanometer utilizes a unique, space saving design for fast, accurate, middle ear measurements. Features and Benefits NOAH compatible. Ergonomic design. Full Color, high resolution graphic result display. Probe Tone: 226 Hz. lpsi Reflex Frequencies: 500 HZ, 1KHz, 2KHz, 4KHz. Rechargeable docking station supplied with extra battery. Optional High Frequency available; provides 1,000Hz Probe Tone
Additional Information
Materials Included easyTymp Tympanometer Unit Power Supply Unit Eartip Kit 10 pc. Eartip, Mushroom, Blue, 7 mm 10 pc. Eartip, Mushroom, Green, 9 mm 10 pc. Eartip, Flanged, Red 3-5 mm 10 pc. Eartip, Mushroom, Blue, 11 mm 10 pc. Eartip, Mushroom, Green, 13 mm 5 pc. Eartip, Umbrella, Red, 15 mm 5 pc. Eartip, Mushroom, Blue, 15 mm 5 pc. Eartip, Mushroom, Yellow, 19 mm 5 pc. Eartip, Umbrella, Blue 19 mm 1 Probe Cleaning Tool Rechargeable Battery Calibration Cavity Cradle Maico Impredence Software User Manual
Tech Specs
Technical Specifications General Dimensions: Width: 4" Depth: 15" Height: 15" Memory: 1 curve per ear and test Internal Memory: > 1000 measurements Display: Full Color Graphic LCD-Display Cradle Dimensions: Width: 6" Depth: 12" Height: 4.5" Power: 100 - 240 VAC, 50/60 Hz Typanometry Mode Probe Tone Frequency: 226 Hz ± 1%, 69 dB HL Pressure Range: -400 to + 200 daPa Pressure Accuracy: ±10% or ±10 daPa Pressure Limitation: -750 daPa and +500 daPa Volume Range: 0.1 to 8.0 ml Test Time: < 3 Seconds Reflex Mode Test Frequencies: 500, 1000, 2000, 4000 Hz ± 1% accuracy Test Mode: Ipsilateral Intensities Reflexes: 70 to 100 dB HL Intensities Setting: Automatic or single intensity Compliance: Range: 0.1 to 8.0 ml at 226 Hz probe tone (Ear volume: 0.1 to 8.0 ml) and 0.1 to 15 mmho at 1000 Hz probe tone Test Types: Tympanometry - Automatic, where the start and stop pressure can be user-programmed in the set-up function.
Shipping Information
Please Inquire
Warranty & Returns
1-Year Warranty
