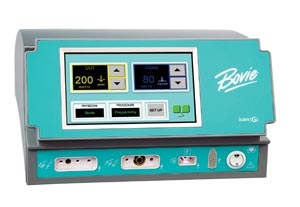

The ICON Gi is an innovative electrosurgical generator with fully digital implementation for use in today’s modern GI suites. It was designed in conjunction with GI clinicians to provide a safe, user-friendly unit that can meet all GI procedure demands. Features and Benefits Easy to Use Touch-Screen Interface with high resolution TFT color display has no buttons or knobs. Swivel bezel allows the brightly lit screen to be viewed from almost any angle. Intuitive graphical user interface allows easy setup and quick settings adjustments. Physician Preference database provides a quick changeover between cases. Safety Bovie NEM™, is recognized amongst the safest technology available to reduce the risk of pad burns. Visual and audible indicators increase patient safety by requiring the use of split pads. Common Sense error messaging prevents misinterpretation and allows for quicker troubleshooting. Open Circuit alert tone. Upgradeable Convenience of software upgrades with Bovie USB, so the unit is never outdated. Reliability Standard Two-Year Warranty The ICON Gi is backed by the Bovie name, the most recognized name in electrosurgery. Clinical Benefits Safe Cut — mode is specifically tailored for polypectomy and ERCP procedures. Gentle Coag — reduces the risk of perforation of the colon wall. Bovie FSDS™ — senses tissue changes over 5 million times per second for the most consistent energy delivery available.
Technical Specifications Output Type RF Isolated “F” Output Power Pure Cut 200W @ 300Ω Blend 100W @ 300Ω Safe Cut 200W @ 50Ω Pinpoint Coag 80W @ 500Ω Gentle Coag 120W @ 125Ω Bipolar 80W @ 100Ω Gentle Bipolar 50W @ 25Ω Output Frequency 492 kHz ±5 Line Voltage 100-240 VAC 50-60 Hz
