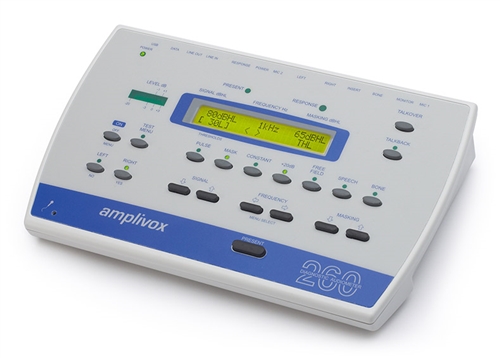

The Amplivox 260 audiometer incorporates many innovative features which make it the ideal choice for conducting diagnostic audiometry. Features and Benefits Functionality The Amplivox 260 offers air conduction, bone conduction and speech audiometry. Standard features include narrowband and speech weighted masking, together with a number of specialist tests Ease of Use A reduced test time and a higher level of test subject concentration are made possible by the threshold retention function. Results can be saved in memory, printed with the optional printer and/or transferred to a PC with the included NOAH interface Usage With talk forward/back functionality, the Amplivox 260 can be used within a static environment with acoustic booths or as a totally portable diagnostic audiometer for peripatetic use.
Materials Included Amplivox 260 audiometer (1) Audiometric headset (1) Bone conductor headset (1) Patient response switch (50) Audiogram cards (1) Mains Adapter (1) Integrated talk over function (1) Carrying Case CD with Operating Manual, Amplivox AudiView & NOAH Impedance Module PC applications
Technical Specifications Output/Input Data Outputs: Left AC, Right AC, Bone(L&R), insert masking and freefield Frequency range (Hz): AC: 125 - 8kHz BC: 250Hz - 8kHz Frequency Accuracy: <1% Distortion: <2% Output Level Range (AC): -10dBHL to 120dBHL (max) Output Level Range (BC): -10dBHL to 70dBHL (max) Output Level Range (FF): Up to 90dB Insert masking output: 90dBHL max (250-4kHz) Output Level Accuracy: Within 3dB Output Level Step Size: 2.5dB or 5dB Tone Present: Pure Tone, Pulsed, Warble or Continuous Masking: Narrowband and broadband Stenger: Pure tone Stenger test ABLB: Loudness balance test (Fowler) Communication: Integral talk over and talk back facility Recorded speech: Tape or CD input Live Speech: 2 x microphone input Level indicator: Monitors live and recorded speech NOAH Interface: Transfer of AC, BC, Speech and ULL test results Physical Data Display: 2 lines of 24 characters (backlit) Power (battery): 4 x 1.5V āCā type batteries Power (mains): 100-240V ac 50-60Hz Dimensions: Length: 10.5" Width: 7" Height: 2.75" Weight: 1.8 lbs Standards Safety: IEC 60601-1 EMC: IEC 60601-1-2 Audiometric: IEC 60645-1, IEC 60645-2 ANSI S3.6 CE Mark: Complies to EU Medical Device Directive
Please Inquire
2-Year Warranty
