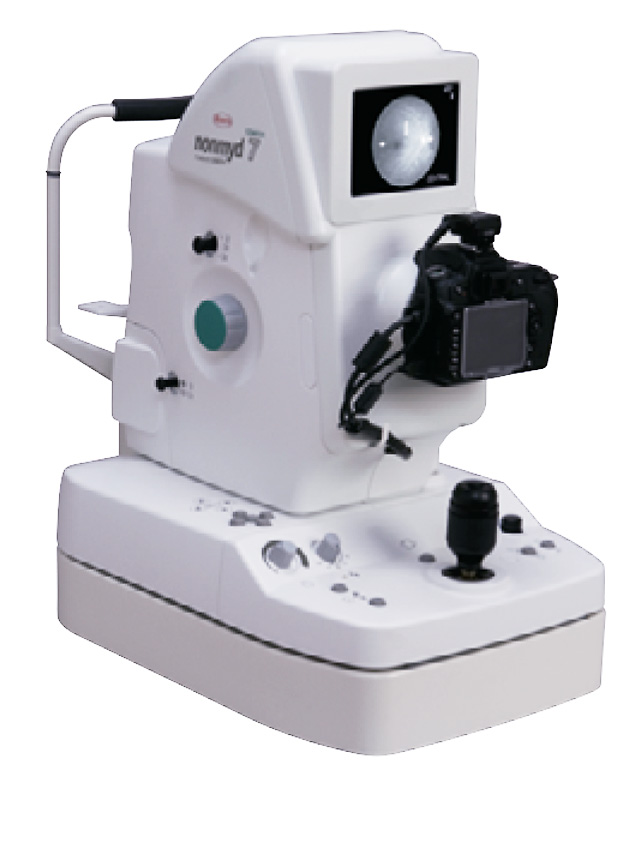

The Kowa nonmyd 7 is an easy-to-use fundus camera featuring 24 megapixel, high resolution photography. Sharper, clearer images guarantee better clinical decisions. nonmyd7 The Nonmyd 7 is a high quality, simple to use digital retinal camera built with traditional Kowa reliability. Capture high levels of clinical detail with the sharp and clear images of the latest Nikon® digital camera. A choice of optical magnifications offers the standard 45° view or a 20° view for enhanced detail. A choice of fixation modes offers three standard positions while the optional external fixation target allows the user to choose the position on the retina. The industry standard USB interface connects to a desktop or laptop PC and the included Portable VK-2 digital imaging software lets you store, view, and compare your images with ease. Features and Benefits All-in-one compact, lightweight digital fundus camera incorporates advanced technology in an efficient design This cost effective design uses intuitive ergonomic operations making photography easy. 24 Megapixel Digital Camera The high resolution digital camera offers high quality image and allows easy image storage. 7 utilizes a 24 megapixel digital camera Easy Operation The camera can be used with a desktop computer equipped with the Kowa's Portable VK-2 Digital Imaging System. Regardless of the volume of photographs taken, nonmyd 7 & Portable VK-2 lets you store, restore and compare data with ease. Shoot and forget allows easy image storage and automatic image saving. Easy-to-Use Control Panels Located at Your Fingertips
Specs Working Distance 30mm (distance of examined eye to front end of objective lens) Monitor 5.5 inch LCD Monitor Dimensions 310 (W) x 504 (D) x 548 (H) Weight 21 kg/46 Field Angle 45° /20° Effective Pupil Diameter ⌀4mm (small pupil mode: ⌀3.7mm) Working Distance Adjustment 2 Luminous Dots Indication Type (Anterior segment/ Fundus Electrically Switched) Internal Fixation Target 4 Fixed Dots Type: Switching External Fixation Target Red Light, (Blinking Option) Optical Head Base Adjustment Range Forward/Backward: 40mm Left/Right: 100mm Vertical (Electric Powered Adjustment): 30mm Focusing Split Luminous Bars Coincidence Power Supply Input: AC100V-AC230V 50/60Hz Power Consumption: 200VA (Normal)/ 250VA (Maximum) Auto OFF Function Time Setting Function Capabilities Applicable Digital Camera Specific Nikon Digital SLR Camera Chin Rest Adjustment Range 60mm (Electric Powered Adjustment) Compensation Range of Examined Eye Without Compensation: -15D to +13D -Compensation: -33D to -11D +Compensation: +10D to +40D
