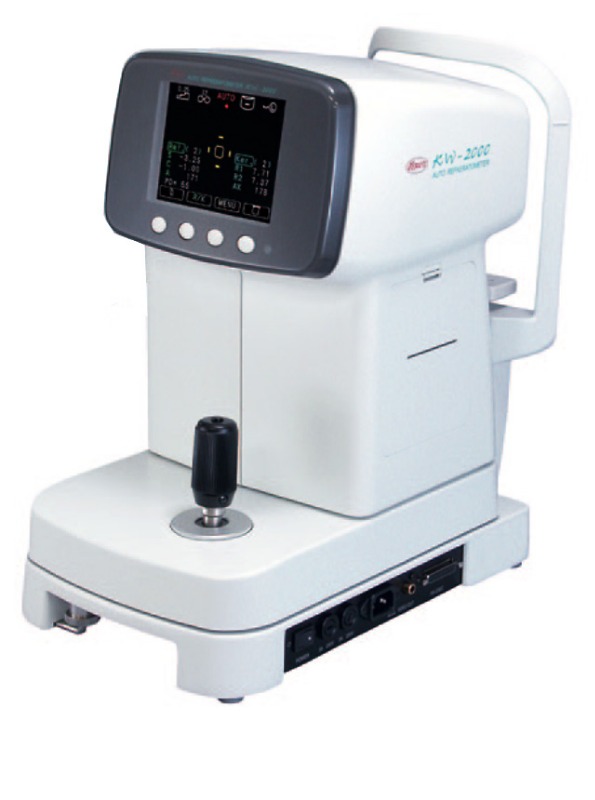

KW-2000 Auto Refkeratometer
Details
Kowa's combination autorefractometer & keratometer offers quick and easy objective measurements of the refractive error of the eye, thus providing the data needed to assist with both spectacle and contact lens fitting. The auto start function makes operation straightforward - just focus and measurement begins automatically. Interpretation of the results is simple with an on-screen readout display using colored icons as well as a paper printout. Small pupils down to ⌀2.3mm can be measured even with IOL implants. In addition, the KW-2000 includes a keratometry function with central measurement as well as the periphery in four directions. Features and Benefits This automatic refractometer and keratometer gives you everything that is required for glass and contact lens fitting. Applicable for small pupil (φ2.3 mm in diameter) and eye with an IOL. Easy measurement with auto start function. Keratometry around the cornea can measure center of the cornea and its periphery in four directions Subject-friendly color icon display.
Tech Specs
Specs Printer Thermal Line Printer with Automatic Cutter (Paper Width: 57mm) Monitor 5.6 Inch LCD Color Monitor Dimensions 245(W) x 422(D) x 429(H)mm Weight 15kg Power Saving Function OFF, 3, 5, 10min Refractive Measurement Range Cylinder Axis: 0° to 180° (Step:1°) Refractive Measurement Range Measurement Time: 0.07 Seconds Refractive Measurement Range Sphere Power: -25 to +25D (Step: 0.12/0.25D) Refractive Measurement Range Cylinder Power 0 to ±10D (Step: 0.12/0.25D Keratometry Measurement Range Cylinder Power: 0 to ±9D Keratometry Measurement Range Cylinder Axis 0° to 180° (Step: 1°) Keratometry Measurement Range Radius Curvature 5.00 to 10.00mm (Step:0.01mm) Keratometry Measurement Range Measurement Time: 0.07 Seconds Keratometry Measurement Range Refractive Power: 33.75 to 67.5D (Step: 0.12/0.25D) (A refractive Index of Cornea: n=1.3375) Measurement Mode Ref/Kerato Continuous, Ref Single, Kerato Single, Corneal Periphery Vertex Distance 0, 10, 12, 13.5, 15mm Pupil Diameter ≈2.3mm (Minimum) PD Measurement Measurement Range: 85mm (Step: 1mm) Adjustment Range for Sliding Body Back/Forth: 34mm Right/Left: 86mm Vertical: 35mm Vertical Adjustment Range for Chin Rest ±30mm Data Output RS232C/Video Terminal Power Source Input: AC100-240V, 50/60Hz, 80VA
