Kowa American Corporation

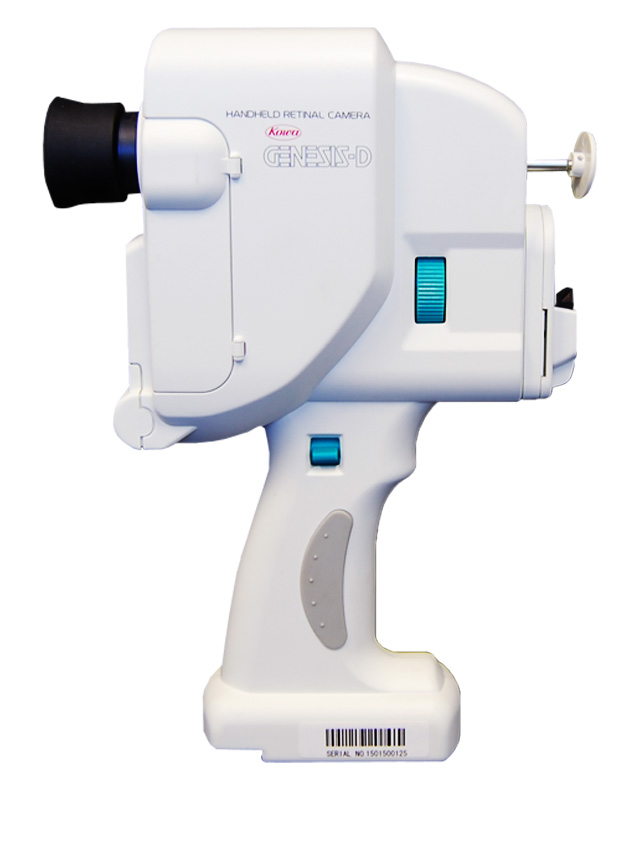

Genesis-D Portable Retinal Camera

Genesis-D Portable Retinal Camera

Brand:   Genesis
Condition:   New
A series of portable retinal cameras made from Kowa's technology.
Have a question? Feel free to Ask a question
Please Sign In To Inquire Price
If you just logged in, please refresh the page


A series of portable retinal cameras made from Kowa's technology. The best choice to start retinal photography! Genesis-D Kowa’s portable retinal camera range is ideal for domiciliary situations or where imaging using a conventional table-mounted camera is not possible. The GENESIS portable retinal camera range has been designed for easy one-handed shooting, and can be operated from both sides of the camera. ID input Integrated with a 2 megapixel digital camera One-handed focusing and shooting operations Power supply unit which is used also as a camera holder Features and Benefits GENESIS-D (For Color Retinal Photography) One-Handed Easy Shooting GENESIS-D (for color retinal photography) GENESIS-Df (For Color Retinal Photography) One-Handed Easy Shooting GENESIS-Df (for color retinal photography) Options for Extended Use Digital Imaging System Kowa's VK-2 digital imaging system can be used with the GENESIS-D series to capture images. Options for more extended use Indirect Lens Holder Indirect Lens Holder* (for +28 D aspherical lens) Indirect Lens Holder* (for +60 D, +90 D aspherical lenses) * Aspherical lens is not included.

Tech Specs

Specs Working Distance 5mm (Distance from Prism to Cornea) Camera 2 Megapixel Angle of View for Photographing Horizontal: 30° / Vertical: 25° Diopter Compensation Range (Patient's Eye) -15m-1 (D) to +35m-1 (D) Illumination for Observation LED (White) Flash Lamp Photographing Xexon Flash Lamp Display Screen 2.5inch TFT Liquid Crystal Monitor Recording Media CompactFlash® (Type 1) Image Quality Selectable from FINE/NORMAL (JPEG) RAW DATA (BMP) Output Terminals USB (1.1) Terminal with B-Connector, Compatible with Windows® ME/2000/XP and Footswitch Connection Cable Terminal Input Voltage AC100-240V, 50/60Hz Power Input 60VA Dimensions of Main Unit 74.5 (W) x 197 (D) x 278.5 (H) mm Weight of Main Unit 1070g/2.34lbs Dimensions of Power Supply Unit 180 (W) x 300 (D) x 230 (H) mm Weight of Power Supply Unit 1930 g/4.23lbs Diopter Adjustment Range (Ocular) -8m-1 (D) to +5m-1 (D)
