HLM-7000P
Details

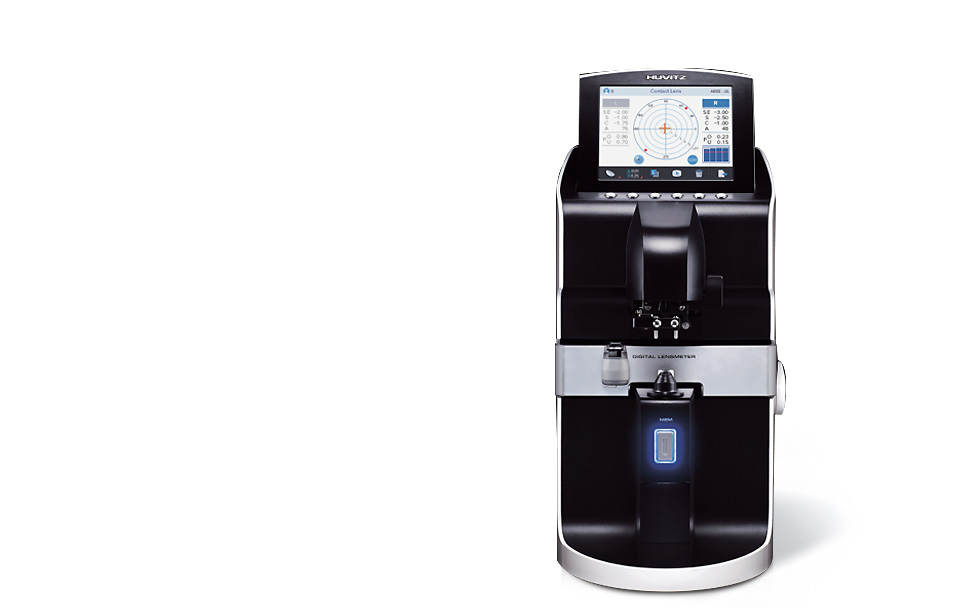

Huvitz Digital Lensmeter HLM-7000P Shows that supreme precision can be compatible with great comfort. Wavefront Analysis Technology with the Hartmann Sensor Providing more accuracy in the measured values utilizing the Hartmann Sensor Wavefront Analysis Technology with more measurement points than our previous generations. Expanded Prism Measurement Range Prism measurement range has been expanded up to 20՛, measuring from all directions of : BU, BD, BI, BO. Incomparable UV Measurement Level Assessments Few lensmeters provide UV assessments with the exact numerical value. Feel the difference and provide patients with the exact UV protection figure. 5.7” Color & High-Resolution IPS Panel (LCD) The HLM-7000P screen also features an anti-glare coating giving you a sharp image, and also has a hardened coating to protect the screen from scratches. Adjustable brightness function, for comfortable use in all room light conditions.
Tech Specs
MEASUREMENT MODE Cylinder -, +, ± Prism Rectangular / Polar / Displacement Sampling Speed 22fps LED Wavelength 525nm (Green) Measurable Lens Diameter 15~120mm Contact Lense Hard and Soft ABBE Values 30~60 (1Step) Wavelength e-Line, d-Line MEASUREMENT RANGE Sphere Power 0 ~±25.00D Cylinder Power 0 ~±10.00D Cylinder Axis 0°~ 180°(1°) Add Power 0 ~ 10D Prism Power 0 ~ 10Δ INCREMENTS Diopter 0.01 / 0.06 / 0.12 / 0.25D Prism 0.01 / 0.06 / 0.12 / 0.25Δ DIMENSIONS Dimension 190(W) x 237(D) x 377(H)mm / 5.5kg Power Supply AC 100-120V / AC 220-240V 50 / 60Hz Display Color LCD Display (640x480) Baud Rate 9,600 / 57,600 / 115,200bps Data Output RS-232C Designs and details can be changed without prior notice for the purposes of improvement.
