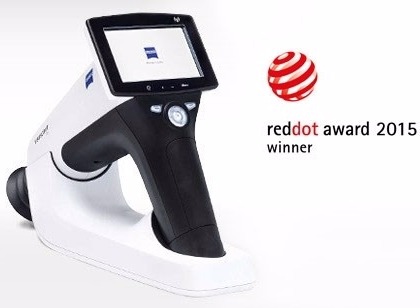

VISUSCOUT 100 Handheld Fundus Camera
Details
Reliably detecting and monitoring retinal disorders is key to ensuring high-quality care and to maintaining the vision of your patients. The VISUSCOUT® 100 from ZEISS lets you do precisely that. As a mobile fundus camera, it is the perfect imaging companion. Flexible and mobile fundus imaging Packed into a small, rugged carrying case, the ZEISS VISUSCOUT 100 can be conveniently transported and easily fits into any practice setup. Thanks to the camera’s non-mydriatic operation and precise autofocus function, dilation of the eyes is not required. Its battery power provides added flexibility. The optional WiFi functionality enables instant transfer of images to a PC or mobile device. Easy capture of images and videos Take color and red-free images instantly with the 40° field of view. The device fulfills all relevant ISO 10940 fundus camera standard requirements. With its on-screen targeting aid and integrated autofocus function, using the device is easy and convenient. Nine internal fixation LEDs help align the patient correctly and also facilitate the capture of peripheral images.
Tech Specs
VISUSCOUT 100 Dimensions (W x D x H): 115 x 216 x 199 mm Weight: 800 g Sensor resolution / type: 5 MP / CMOS Protection class: 1 Charging station: 100 - 240 V ~0.4 A 47 - 63 Hz, Output: 9 V, 1.1 A, 10W Battery: Rechargeable Li-Ion 3.7 V, 1950 mAh Field of view: 40° Capture mode: Color, red-free, IR Focus range: - 20 D to + 20 D Fixation: 9x LED, internal Minimum pupil size: 3.5 mm Display: 3.97’’, TFT-LCD, 800 x 480 px, 16.7 M colors, anti-glare coating
Downloads
Warranty & Returns
ZEISS Customer Care Service agreements for ZEISS Essential Line Every facet of Customer Care at ZEISS is designed to protect your investment in your equipment. Whether it is a high-end surgical microscope, an ophthalmic laser, or diagnostic equipment, we provide timely, responsive services through a national network of highly skilled technicians. Our dedication to providing the highest quality of customer care is reflected by the fact that our customers consistently rank us superior in terms of their satisfaction with our performance.
