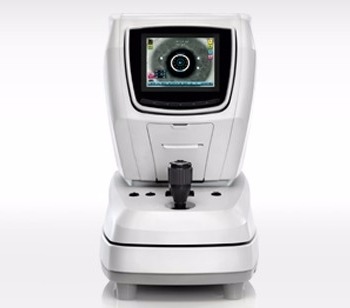

VISUREF 100 – autorefractor and keratometer
Details
When taking care of patients, every minute is valuable. There is no time for dealing with complex systems. Still, you need diagnostic data that is reliable and accurate, no matter what. Especially for the very first step in vision care: the refraction/keratometric evaluation.
Additional Information
Motorized chinrest Conveniently operated by two buttons next to the joystick, the motorized chinrest lets you quickly and comfortably position the patient. Quick release brake Within easy reach of the joystick, the quick release brake can be used to disable the XY movement of the instrument base. It helps you to comfortably position the instrument and increase the ease of use when the patient is seated. Tiltable, 6.4 inch TFT display Diagnostic information is clearly displayed in excellent contrast and resolution on the adjustable TFT monitor. Featuring a tilt range of 20°, it can be adjusted for individual user viewing preferences. Connectivity with ZEISS VISUCONNECT 500 Connect your device to a local network, use a patient work list on a tablet or PC and transfer measurements to your EMR/PMS or FORUM® from ZEISS with the optional VISUCONNECT® 500 from ZEISS.
Tech Specs
4 different operation modes - Refraction and keratometry combined (RK) - Refraction (REF) - Keratometry (KER) - Contact lens base curve (CLBC) Refraction Sphere (SPH): -25 D to + 22 D in 0.12 / 0.25 D increments Cylinder (CYL): 0 D to ± 10 D in 0.12 / 0.25 D increments Axis (AX): 0° to 180° in 1° increments Vertex Distance (VD): 0.0, 10.0, 12.0, 13.5, 15.0 mm Pupil Distance (PD): 10 - 85 mm Min. Pupil Diameter: 2 mm Keratometry Corneal Curvature 5.0 - 10.2 mm in 0.01 mm increments Corneal Refraction: 33 D to 67.5 D in 0.12 / 0.25 D increments Corneal Astigmatism: 0 D to -15 D in 0.12 / 0.25 D increments Axis: 0° to 180° in 1° increments Corneal Diameter: 2.0 - 12.0 mm in 0.1 mm increments Chinrest Movement: 65 mm motorized Printer: Thermal, integrated Connectivity: 1 x RS232, 1 x USB, 1 x ext. video Power Supply: AC 100V - 240 V, 50/60 Hz Dimensions, Weight: 275 mm x 525 mm x 450 mm (WDH), 18 kg
Downloads
Warranty & Returns
ZEISS Customer Care Service agreements for ZEISS Essential Line Every facet of Customer Care at ZEISS is designed to protect your investment in your equipment. Whether it is a high-end surgical microscope, an ophthalmic laser, or diagnostic equipment, we provide timely, responsive services through a national network of highly skilled technicians. Our dedication to providing the highest quality of customer care is reflected by the fact that our customers consistently rank us superior in terms of their satisfaction with our performance.
