AT 020 Applanation Tonometer
Details

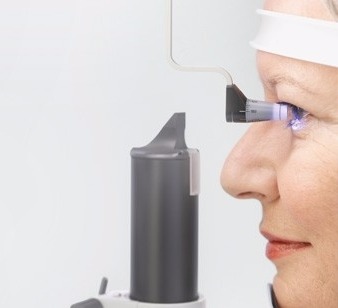

The AT 020 Applanation Tonometer from ZEISS allows precise measurement of intraocular pressure. Depending on your preference, you can attach an upright tonometer with a working position over the slit lamp swivel joint or mount a suspended tonometer on the stereomicroscope. The AT 20 was designed on the principle introduced by Professor Goldmann. This principle represents the gold standard in tonometry. Adapters allow the tonometers to be mounted to different slit lamps. Naturally, even with a mounted applanation tonometer, you still have the possibility for later slit lamp extensions.
Tech Specs
Applanation Tonometers: AT 020 Measuring body: 2 prisms for image splitting Diameter of applanation field: 3.06 mm (0.12 in) Measuring range: 0 - 78 mN Scale reading: 1.96 mN Reading of graduated drum: X 10 = intraocular pressure in mm Hg (or conversion to kPa with conversion table) Dimensions of tonometer: 200 x 85 x 218 mm (7.9 x 3.3 x 8.6 in) Total weight: 680 g (1.50 lbs)
