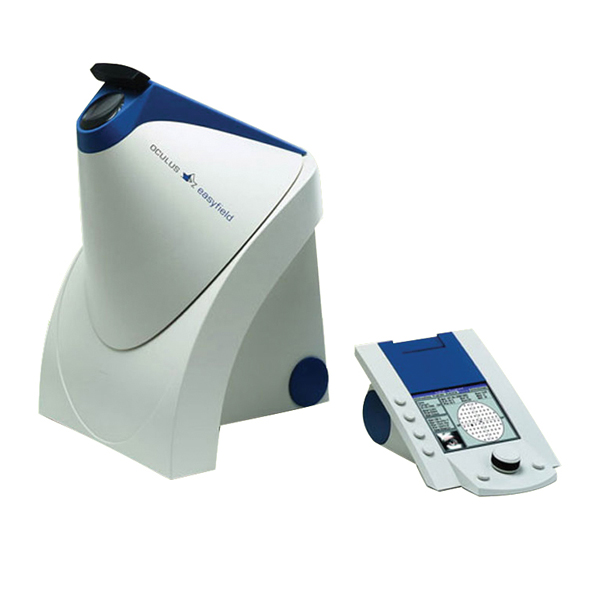

Oculus EasyField Visual Field
Details
Oculus EasyField Visual Field The Oculus Easyfield is an exciting new compact perimeter to do static perimetry up to 30°. It has been designed for the combined use as a visual field screener and perimeter, offering features usually available only in large units. The Easyfield’s integrated bowl with a 11.81” (30 cm) radius and distance corrected lens is adapted to the Goldman standard and fulfills the ISO-norm 12866 for perimeters. The Easyfield has a fixed point grid with 135 test locations including 30-2. The unit offers various testing methods including: · Fast Threshold (3 minutes) · Normal Threshold (6 minutes), and · Supra-threshold with numerous testing strategies.
Tech Specs
Static Perimetry Programs: Pre-defined glaucoma, macula, screening and neurological tests User-defined tests Test Patterns: 30-2, 24-2, 30×24, 10-2, hemisphere, customized patterns Strategies: Threshold strategies: SPARK Quick, CLIP, OCULUS Fast Threshold, Full Threshold (4/2) Optional: SPARK Precision Age adapted suprathreshold screening (2-zone, 3-zone, quantify defects) Examination Speed: Adaptive, fast, normal, slow, user-defined Fixation Control: CMOS camera, through central threshold, Heijl-Krakau (using the blind spot) Result Display: Glaucoma Staging System (GSS2), Glaucoma Staging Program (GSP) Reports: Threshold Noiseless Trend (TNT) progression report Specifications Perimeter Bowl Radius: r = 30 cm (11.8 in) Maximum Eccentricity: 30° Stimulus Size: Goldmann III Stimulus Luminance Range / Increments: 0.03 – 3,180 cd/m² (0.1 – 10,000 asb) / 0.1 log steps Background luminance: 10 cd/m² (31.4 asb) Stimulus Color: White Stimulus Duration: 200ms / user-defined Patient Positioning: Measurement head with adjustable angle of inclination, adaptable double chinrest, double headrest Software: Device control, patient management, backup, and print software (Windows®) Built-in networking, easy EMR-integration, DICOM compatibility Interface: USB, RS232 Technical Specification Dimensions (W x D x H) 316 x 506 x 435 mm (12.4 x 19.9 x 17.1 in) Weight with Accessories 6.8 kg (15.0 lbs) Max. Power Consumption 30 W Voltage and Frequency 100/240 V AC 50-60Hz
Warranty & Returns
6 months Parts and Labor
