Details

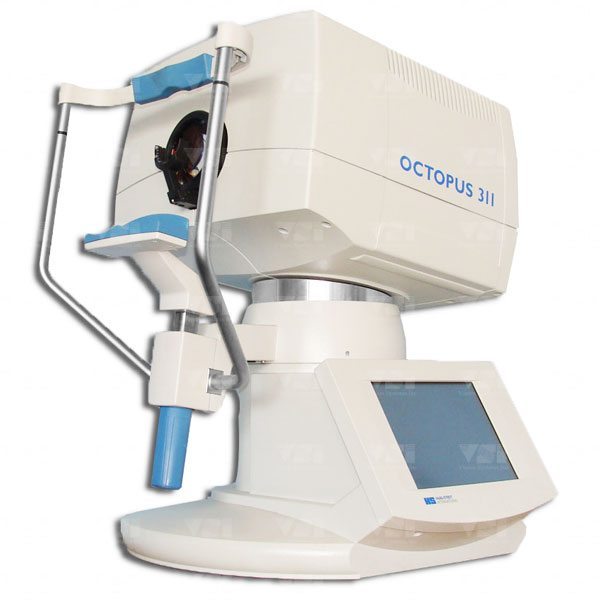

Haag Streit Octopus 311 Approval Worldwide OPTICAL SYSTEM (SPECIAL/TIME, min) 30° direct projection INSTALLATION No dark room conditions required Rotating examination unit, permitting access from all sides Operation (DOOR(S)) Color LCD input screen Work log counter Ongoing counting of examinations Dialog language All languages available in Windows® Eye monitor Infrared sensitive eye camera and video display Eye fixation control Electronic eye fixation control Automatic fixation adjustment Perimeter automatically adjusts for fixation loss Pupil size measurement Continuous average pupil size measurement Examination programs Programs G1, 32, M2, ST and LVC Test Strategies Normal 4-2-1dB, Low vision, Dynamic and 2LT (Qualitative 3-zone) strategy Automatic procedures Automatic test settings available for all programs Stimulus sizes Goldmann III and V Stimulus Intensity 0-4’800asb Background illumination 31.4 / 314asb Printer output USB output for connection to standard inkjet printers Print-out formats Selection of 8 print-out formats, including Two-on-One format Data output to PC Data transfer in conjunction with PeriTrend (option) SOFTWARE UPGRADES Exchange of software module or transfer of updates from PC by CD or downloading from Internet User defined programs 5 custom tests and free selection of catch trials Special Perimetry Blue-on-Yellow Perimetry Network connection Integrated LAN adapter with Ethernet interface REMOTE CONTROL (CATHETERS/PROBES) PC control of perimeter functions POWER REQUIREMENTS 100-240VAC, 40VA
