Vision Systems Inc

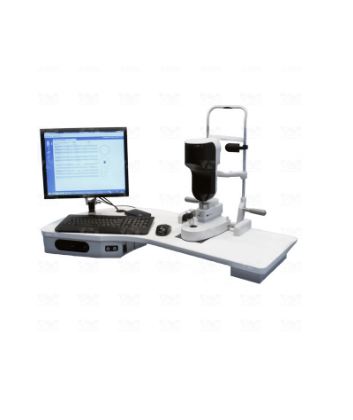

Haag-Streit Lenstar LS 900 Optical Biometer

Brand:   Haag-Streit
Condition:   SellerRefubrished
LENSTAR LS900 provides the user with a complete biometrical assessment of the patient’s eye in a single measurement procedure.
Quantity:
Have a question? Feel free to Ask a question
Please Sign In To Inquire Price
If you just logged in, please refresh the page

Details

Haag-Streit Lenstar LS 900 Optical Biometer LENSTAR LS900 provides the user with a complete biometrical assessment of the patient’s eye in a single measurement procedure, including lens thickness, anterior chamber depth (lens position) and retinal thickness. The all in one biometer, keratometer, pachymeter, pupillometer and IOL calculator. Get up to nine measurements in one shot, including lens thickness. T-Cone Toric Platform LENSTAR’s unique measurement and planning platform for toric IOL now featuring the Barrett Toric Calculator for improved toric IOL prediction. The Olsen Formula for superior IOL prediction LENSTAR is the first optical biometer on the market providing accurate measurement of the lens thickness, paired with the on board Olsen IOL calculation formula LENSTAR provides premium IOL prediction for all kind of human eyes. Premium post refractive IOL calculation. Featuring the Shammas No-History, the Masket and the Modified Masket method, LENSTAR provides the cataract surgeon with an easy to use tool for the calculation of post refractive patients. EyeSuite Biometry Software In addition to the ease of using only a single measurement, the LENSTAR® also provides a user-friendly application and navigation of the software interface. This allows even inexperienced persons to easily begin to use the device without intensive training. Measurements can be performed by assistants, thus improving the efficiency of the clinic. User-friendly and ergonomic Best measurements for optimum IOL prediction Ready for the future in IOL power calculation Intuitive and open Best measurements for optimum IOL prediction LENSTAR® provides the user with a complete assessment of the human eye with the highest precision using OLCR technology. The patient fixates on the measurement beam, ensuring that all length measurements are taken on the visual optical line. Specifications The below mentioned measurement ranges are based on the standard settings of the device for automatic measurement and analysis. In-vivo repeatabilities (1.SD) have been derived from data of a clinical study. This study was designed and accomplished as a prospective, non-randomized single site comparison study. Corneal thickness (CT) Anterior chamber depth (ACD) Measurement range Display resolution In-vivo repeatability (1.SD) 300 – 800 μm 1 μm ±2.3 μm Measurement range Display resolution In-vivo repeatability (1.SD) 1.5 – 5.5 mm 0.01mm ±0.04 mm Lens thickness (LT) Eye length (AL) Measurement range Display resolution In-vivo repeatability (1.SD) 0.5 – 6.5 mm 0.01 mm ±0.08 mm Measurement range Display resolution In-vivo repeatability (1.SD) 14 – 32 mm 0.01 mm ±0.035 mm Keratometry White-to-white distance Measurement range for radius Display resolution In-vivo repeatability Measurement range for axis angle Display resolution In-vivo repeatability (1.SD) 5 – 10.5 mm 0.01 mm ±0.03 mm 0-180° 1° ±11° Measurement range Display resolution In-vivo repeatability (1.SD) 7 – 16 mm 0.01 mm ±0.04 mm Pupillometry Retinal thickness Measurement range Display resolution 2 – 13 mm 0.01 m Manually assessed Display resolution 1 μm

Tech Specs

Specifications The below mentioned measurement ranges are based on the standard settings of the device for automatic measurement and analysis. In-vivo repeatabilities (1.SD) have been derived from data of a clinical study. This study was designed and accomplished as a prospective, non-randomized single site comparison study. Anterior chamber depth (ACD) Measurement range Display resolution In-vivo repeatability (1.SD) 300 – 800 μm 1 μm ±2.3 μm Measurement range Display resolution In-vivo repeatability (1.SD) 1.5 – 5.5 mm 0.01mm ±0.04 mm Lens thickness (LT) Eye length (AL) Measurement range Display resolution In-vivo repeatability (1.SD) 0.5 – 6.5 mm 0.01 mm ±0.08 mm Measurement range Display resolution In-vivo repeatability (1.SD) 14 – 32 mm 0.01 mm ±0.035 mm Keratometry White-to-white distance Measurement range for radius Display resolution In-vivo repeatability Measurement range for axis angle Display resolution In-vivo repeatability (1.SD) 5 – 10.5 mm 0.01 mm ±0.03 mm 0-180° 1° ±11° Measurement range Display resolution In-vivo repeatability (1.SD) 7 – 16 mm 0.01 mm ±0.04 mm Pupillometry Retinal thickness Measurement range Display resolution 2 – 13 mm 0.01 m Manually assessed Display resolution 1 μm

Warranty & Returns

6 months Parts and Labor
