Ezer ELM-7800 Auto Lensometer

Ezer ELM-7800 Auto Lensometer

Brand:   Ezer ELM-
Condition:   SellerRefubrished
The Ezer ELM-7800 Lensometer refurbished by Vision Systems Inc. provides outstanding performance & quality.
Have a question? Feel free to Ask a question
Please Sign In To Inquire Price
If you just logged in, please refresh the page

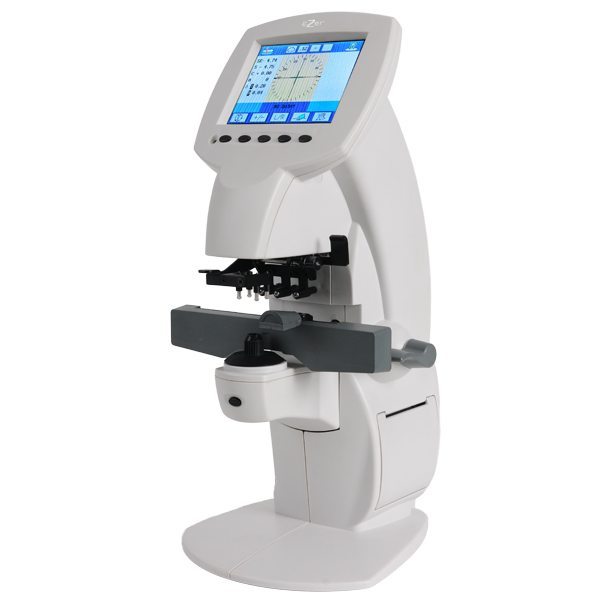

Ezer ELM-7800 Auto Lensometer All-Lens Measurement. The ELM-7800 offers the utmost in flexibility by accurately measuring all lens type including progressives. The ELM-7800 provides more accurate measurements due to the ISO-standard green LED measurement light, making the ABBE value compensation unnecessary Type of lens is automatically recognized and measured, including progressives lenses Accurate measurement of UV transmittance High resolution 4.7 inch color LCD screen Built-in high speed thermal printer Precise monocular and binocular PD measurements Easy to operate

Tech Specs

Measurement Range Spherical Lens: 0 to ±25.00D (0.01D / 0.12D / 0.25D steps) Contact Lens: (spherical lens) 0 to ±25D (BC=6.00 to 9.00) Cylinder Lens: 0 to ±10D (0.01D / 0.12D / 0.25D steps) Cylinder Lens Axis: 0°~180° (reading increment step: 1°) Addition: 0 to 10D (0.01D / 0.12D / 0.25D steps) Prism: 0.00Δ to 10.00Δ (0.01Δ / 0.12Δ / 0.25Δ steps) Cylinder Lens Measurement Mode: ( – , ± , + ) Prism Measurement Mode: X-Y: Cartesian Coordinates H:I,O;V:U,D P-B: Polar Coordinates mm: mm expression Display: 5.7 TFT LCD Lens Diameter: 20mm-100mm Power Source: AC (110V-240V) ±10%: 50/60HZ 40 VA Power Consumption: 40W Weight: 4Kg Dimensions: ( W x H x D ) 200mm x 420mm x 290mm

Warranty & Returns

6 months Parts and Labor
