Vision Systems Inc

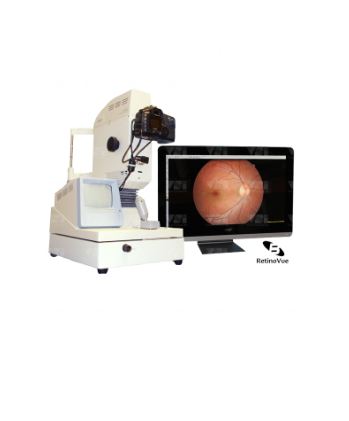

Canon DGi Digital Fundus Camera w/ RetinoVue Software

Canon DGi Digital Fundus Camera w/ RetinoVue Software

Brand:   Canon
Condition:   SellerRefubrished
Canon DGi Digital Fundus Camera w/ Burton RetinoVue Software.
Have a question? Feel free to Ask a question
Please Sign In To Inquire Price
If you just logged in, please refresh the page


Canon DGi Digital Fundus Camera Quick Access to Images • Images taken can be immediately accessed • Images produced are ideal for diverse applications including telemedicine, PC-based video conference, electronic filing, and remote storage. Easy Alignment & Focusing • Simple preparation for image capture Fixation Target • Eye fixation is simplified by user-friendly internal fixation target Reduced Illumination • Small amount of light needed to capture clear images Burton RetinoVue Imaging capture software for the 21st Century. Increased database and quicker patient data fields 3D optic nerve capture and stereo viewing of the retina is easier than ever Import various data from other instruments using our comprehensive DICOM and PDF formats Experience Live view of the retina and capture without requiring 2 monitors On screen digital camera settings allow for fluent transitions to FA and red free photos Review photos without leaving the thumbnail screen provides quicker presentation to patients Software can capture directly from retinal camera and slit lamp to allow for one database Components include: Main Unit Objective Lens Cap Camera Mount Cap Chin Rest Paper 100 Sheets Power Cable Dust Cover Blower Brush Camera Cable Burton RetinoVue Software

Tech Specs

Specifications Type: Non-mydriatic type Angle of View: 45 degrees Operation Distance: 45mm from the front of objective lens Minimum Pupil Diameter: 4mm Image Size: Ø 17mm on the sensor Attachable Digital Camera: Canon EOS Digital Sensor Resolution: 8.8 megapixels with Canon EOS 20D Patient’s Diopter Compensation Range: Without compensation lens: -12 to +15D, With “-” compensation lens: -7 to -33D, With “+” compensation lens: +11 to +35D Working Distance Adjustment Outer Eye Display: Split pupil alignment Retinal Display: Working distance dots Fixation Target: Dot matrix Light Source Observation: Halogen lamp, 12V / 50W Recording: Strobe tube, max. 300W Built-in Monitor: 5-inch monochrome TV monitor Data Output: RS422 Power Supply: 110 – 120V AC, 60Hz 220 – 240V AC, 50 / 60Hz Dimensions: (W x L x H) 324 x 496 x 590mm (12.8 x 19.5 x 23.2in.) Weight: Approx. 23kg (50.6lbs.)

Warranty & Returns

6 months Parts and Labor
