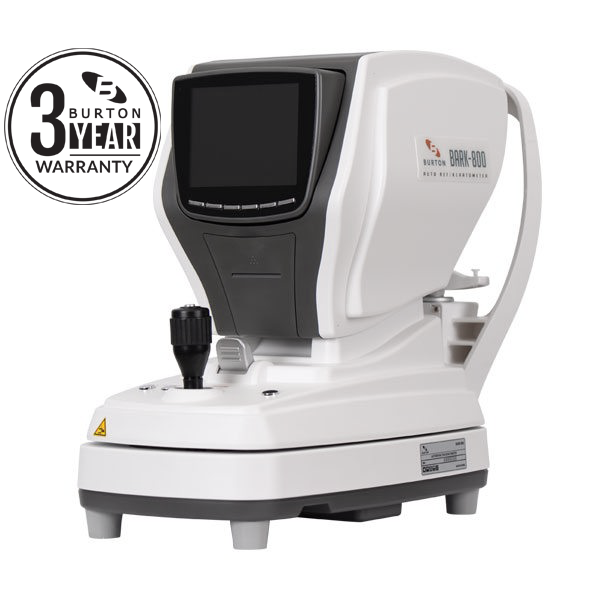

Burton Bark 800 ARK Features: Auto Refractor/Keratometer Enhanced Retro-illumination Imaging Accurate Measurement of Iris & Pupil Diameters Precise Temperature Sensor Compensation Enhanced Measuring Speed Comfortable Motorized Chin Rest Automatic High Speed Cutting Printer Simple One Touch Lock Knob 20 Touch & Tilt Color Monitor Display Sophisticated TFT LCD Graphic User Interface Easy Network Capability Auto Refractor/Keratometer The Burton Bark 800 instantly reports the patient’s assessed eye power by combining the Auto Refractor/Keratometer functions into this one sharp instrument, making measurement a snap. This determines the refractive and keratometric properties of the human eye to assist eye care professionals in the process of prescribing corrective eyeglasses and contact lenses. Enhanced Retro-Illumination Imaging With the Enhanced Retro-illumination Imaging capability in the Burton Bark 800, you can treat and see abnormal crystalline lenses, cataracts, and scratches of corneas helping you to determine how healthy the patients eyes are with better clarity. This allows for observation of the eye condition of the cataract or contact lens surface. The system saves up to 2 images of each eye. Accurate Measurement of Iris & Pupils Diameters The corneal diameter and base curve of contact lenses can be measured with this one instrument. Therefore, measurements of eye and prescriptions for glasses and contact lenses can be made more efficiently. The Burton Bark 800 brilliantly designed technology that measures the eye with ultra-precision and speed to provide reliable data as the starting point for your refraction and contact lens fitting. It’s compact and modern design enables seamless operation and enhanced patient comfort, making it the ideal choice for any ophthalmic practice. Wide Dioptric Measurement Range Because the Burton Bark 800 covers a wide measurement range from -25D to +22D, even an examinee with strong myopia can be measured. Enhanced Measuring Speed Specially designed image chips have succeeded to make REF measuring speed faster reducing the overall examination time and increases throughput for complete examinations. Comfortable Motorized Chin Rest Adjust chin rest simply by pressing up/down buttons, user can set the height of measuring point comfortably. With the cutting edge auto sensor mechanism, you can track down, measure and focus the eye with out ever making a mistake. Automatic Printer Paper Cut The printer is designed to execute, print, & cut data automatically at high speed for immediate results. Simple One Touch Lock Knob With just the touch of a single button, the main body can easily be locked to its base. 20 Degrees Tilted LCD Monitor The LCD Monitor tilts up to 20 degrees; a design made for comfort making. Excellent ergonomics makes it possible to operate the Burton Bark 800 while standing or sitting, for added convenience. Sophisticated TFT LCD Graphic User Interface Sharp images with easy to understand icons make this 6.4-inch color TFT LCD interface user-friendly and enjoyable to work with.
Measurement Mode R / K mode Successive Refractometry & Keratometry Ref mode Refractometry Ker mode Keratometry CLBC mode Contact lens base curve measurement Refractometry Vertex Distance (VD) 0, 10, 12, 13.5, 15 mm SPH -25.00 ~ +22.00D (0.12D / 0.25D) CYL 0.00 ~ +/-10.00D AX 1 ~ 180° Cylinder form -, +, +/- Pupil Distance 10 ~ 85mm Minimum Pupil Diameter Φ 2.0 Keratometry Radius of Curvature 5.0 ~ 10.2mm Corneal Power 33 ~ 67.50D Corneal Astigmatism 00.0 ~ -15.00D (0.05 / 0.12 / 0.25D) AXIS 1 ~ 180° Corneal Diameter 2.0 ~ 12.0 mm Others Printer Thermal / Automatic cut printing Power Saving Nominate by 3,5,10 minutes Display 6.4inch TFT LCD colored Monitor Power Supply AC 100 ~ 240V, 50 / 60Hz / 90W Dimension / Weight 275(W) X 525(D) X 440(H), 20Kg Chinrest Movement Max., 65mm , Motorized operating Data Out-put RS-232 Interface, Video Output Designs and details can be changed without prior notice for its improvements.
6 months Parts and Labor
