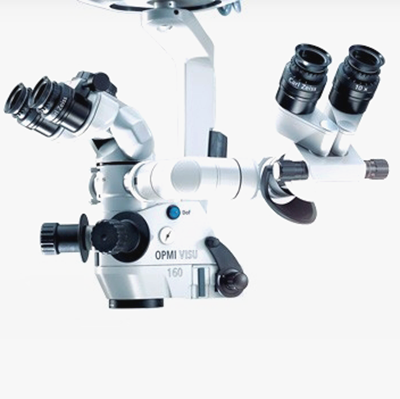

Zeiss OPMI VISU 160 Features The Zeiss OPMI Visu 160 is a state-of-the-art surgical microscope that provides excellent imaging and control during a spectrum of ophthalmology procedures. The microscope features depth of field management, BrightFlex illumination and ergonomic handles for precise adjustments. Surgical microscope designed specifically for hospitals that perform a broad spectrum of ophthalmology procedures. Apochromatically corrected optics. DeepView depth of field management system allows doctors to choose between optimized depth perception or maximum light transmission. Integrated slit simulation offers a contrast-rich detail recognition. BrightFlex illumination for a clear red reflex and good light conditions. Ergonomic handgrips for precise positioning. Easily adjust the speed of the zoom, focus, and X-Y movements to your requirements. Zeiss OPMI VISU 160 Specifications Surgical Microscope Apochromatic optics with T* anti-reflex multi-coating Motorized zoom system. Zoom ratio 1:6, γ=0.4 to 2.4 Focusing range: 50 mm DeepView: Depth of field management system X-Y Coupling Adjustment range 40 mm x 40 mm Illumination BrightFlexTM illumination: • 6° illumination, continuous fading; • +2° illumination for red reflex Integrated slit illumination Vertical: width 2.5 mm Horizontal: width 2.5 mm and 5 mm, movable Integrated 408 nm UV cut-off filter Swing-in GG475 filter to reduce blue portion Swing-in KK40 daylight filter in suspension system Scleral glare reduction filter Fiber light guide Halogen light source (12 V, 100 W) Automatic exchange following bulb failure Optional: swing-in fluorescence filter in suspension system Optical systems Objective lens (mm) f=200 mm, f=175 mm, f=200 mm, f=175 mm Eyepiece 10x, 10x, 12.5x, 12.5x Total magnification* 3.4x – 20.4x 3.9x – 23.3x 4.3x – 25.5x 4.9x – 29.1x Field of view diameter* 10.0 mm – 60.6 mm 8.8 mm – 53.0 mm 8.6 mm – 51.8 mm 7.5 mm – 45.3 mm Suspension systems S7 / OPMI VISU 160 floorstand S7 / OPMI VISU 160 ceiling mount with lifting column S7 / OPMI VISU 160 ceiling mount with rigid column
