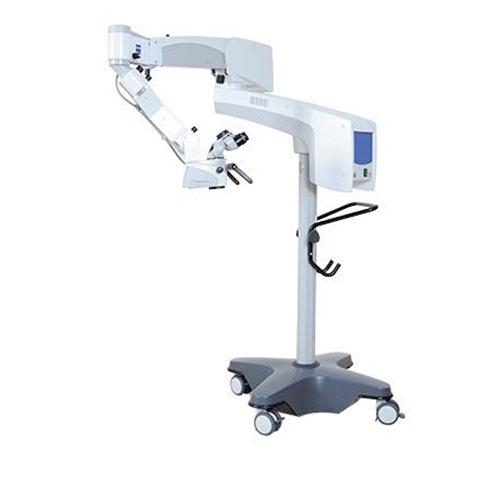

Zeiss OPMI Movena Microscope Specifications Effortless mobility is a trademark of OPMI® Movena. Surgeons can make minor changes to the position of the surgical microscope with their head. The manual balancing system ensures that the surgical microscope is in perfect balance – regardless of the accessories attached. The apochromatic optics and manual Varioskop®, in combination with the 5-step magnification changer and bright illumination, is the ideal combination for surgeons seeking a premium, manual surgical microscope for quick, routine ENT procedures or demanding examinations. OPMI Movena’s compact design enables its use even in the tightest spaces and smallest of operating theatres. Zeiss OPMI Movena Microscope Features Magnification Manual Carl Zeiss magnification changer, 1:6 ratio in 5 steps Focusing system Varioskop® Internal, manual, continuously adjustable Working Range 200 - 415 mm Main binocular tube Straight tube f = 170 mm 0 - 180° tiltable tube f = 170 mm or f = 200 mm with 10x or 12.5x widefield eyepieces (optional) Foldable tube f170 /f260, including PROMAG™ function for additional 50% magnification and integrated rotate function (optional) Illumination Halogen illumination for main and backup illumination: 100 W halogen lamp, backup lamp in fast-action lamp changer Superlux® 180 for main and backup illumination (optional): 180 W xenon lamp with daylight color temperature , backup xenon lamp in fast-action lamp changer Rated Voltage 115 V / 230 V ± 10% Rated Frequency 50 Hz – 60 Hz Power Consumption 115 V, max. 10 A 230 V, max. 8 A Circuit breaker Automatic Weight S7 floor stand: Approx. 177 kg (with OPMI) S7 ceiling mount with rigid column: Approx. 80 kg (with OPMI) S7 ceiling mount with height adjustable column: Approx. 133 kg (with OPMI)
