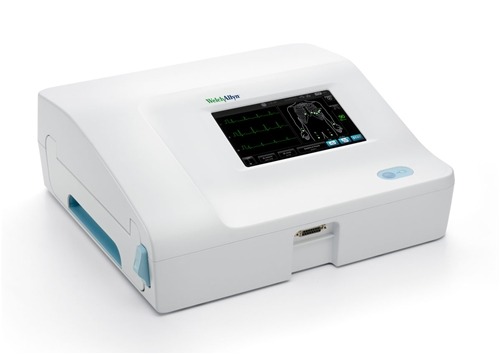

Welch Allyn CP 20 Features The Welch Allyn CP 20™ Electrocardiograph features a full alphanumeric keyboard for easy and fast entry of patient demographics, user-programmable report formats printed on 8.25 × 11 inches thermal paper, ECG measurements, advanced filters for optimal ECG trace quality and battery or AC operation. Non-interpretive 12 lead resting ECG with standard ECG measurements LCD screen for easy patient data entry Multiple printouts including 3x4+1R, 3x4+3R, 6 and 12 channel formats Automatic and manual operation Optional interpretation software 8 or 3 channel ECG Waveform Preview Screen Storage for up to 50 ECGs Welch Allyn CP 20 Specifications Technical Data Paper Size: 8.25in x 11in z-fold Print Device: Thermal dot array Channels: 3, 6, or 12 Chart Speeds: mm/s: 5, 10, 25, 50 Dimensions: (L x W x H) Cardiograph: 15.5in x 17in x 4in Weight: 11.25lbs (5.1kg) Power Requirements 115/230V AC +/-10%, 50/60Hz at external power source
