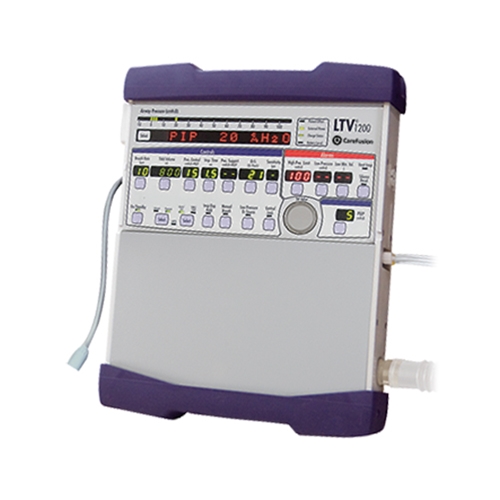

Vyaire LTV 1200 Ventilator The small, lightweight Vyaire LTV 1200 Ventilator provides sophisticated critical care ventilation in austere environments. The ventilator supports both invasive and noninvasive applications. It combines portability, impact-resistant construction, easy-to-read displays and comprehensive monitoring. A single solution for any patient weighing 5 kg or more, the LTV 1200 ventilator weighs only 14.5 lbs and is a pickup-and-go solution that can travel with patients from field care to transport to the intensive care unit (ICU). Quick Patient Ventilation - Choose infant, pediatric, or adult to quickly configure initial ventilation. More versatile than transport ventilators and significantly smaller than ICU systems. The O2 Conserve feature reduces O2 consumption when the time and place of care require it. The internal battery allows transfer from one power sources to the next without interruption. Vyaire LTV 1200 Ventilator Dimensions Height: 3.25 In (8.4 cm) Width: 10.5 In (27 cm) Depth: 13.5 In (38 cm) Weight: 14.5 lbs (6.5 kg) Power Ventilator input 11–15 VDC AC adapter input 100–250 VAC 50–60 Hz Pneumatic High pressure O2 source 40–80 PSIG (2.8–5.5 bar) Low pressure O2 source < 80 LPM, < 10 PSIG Controls Ventilation Modes: Control, Assist/Control, SIMV/CPAP and NPPV Breath Types: VC, PC, PS and spontaneous Breath Rate: 0–80 BPM Tidal Volume: 50–2,000 mL Inspiratory Time: 0.3–9.9 sec PC/PS/Spontaneous Flow: 160 LPM Pressure Control: 1–99 cmH2O Pressure Support: 1–60 cmH2O Sensitivity: Off, 1–9 LPM O2%: 21–100% O2 flush: 1–3 min Low pressure O2: On/Off PEEP/CPAP: 0–20 cmH2O Insp/Exp hold: 6 seconds maximum Manual breath: 1x current settings Monitors and Controls Peak Inspiratory Pressure: 0–120 cmH2O Mean Airway Pressure: 0–99 cmH2O PEEP: 0–99 cmH2O Breath Rate: 0–250 BPM Airway Pressure Display: -10–108 cmH2O Exhaled Tidal Volume: 0–4,000 mL Exhaled Minute Volume: 0–99.9 L I:E Ratio: 99:1–1:99 Calculated Peak Flow: 10–100 LPM AutoPEEP: 0–100 cmH2O Static Compliance: 1–999 mL/cmH2O Patient Effort: Green LED Extended Features SBT Ventilator presets (infant, pediatric and adult) Variable rise time Variable flow termination Variable time termination Pressure control flow termination Leak compensation O2 conserve O2 cylinder duration calculation O2 flush Apnea interval Fixed Alarms Disconnect/Sense External power low and lost High and low O2 inlet pressure Internal battery low and empty Ventilator inoperative
