Details

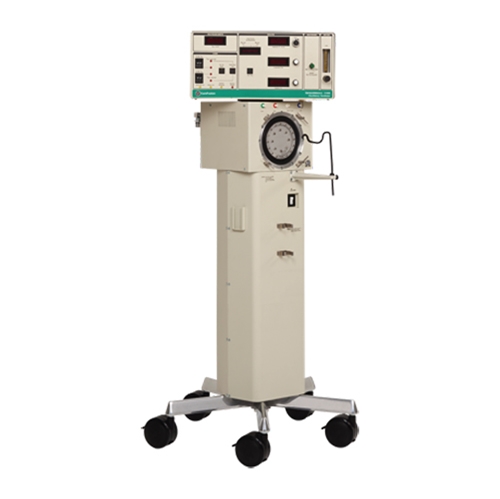

Vyaire 3100b Ventilator Features Based on the established technology of the 3100A ventilator, the Vyaire 3100B HFOV adds the enhanced performance capabilities necessary for adult ventilation. It is approved for the treatment of acute respiratory failure in adults and children weighing more than 35 kilograms. Produces an active exhalation, which is essential at high-frequency respiratory rates to prevent air trapping that may occur with passive exhalation. Offers patented technology and a highly reliable, electromagnetically driven piston that distinguishes it from other high-frequency ventilators. Permits variable I:E ratios, which are desirable for managing ventilation. Vyaire 3100b Ventilator Specifications Dimensions Height: 53.8 In (136.7 cm) Width: 18.6 In (47.2 cm) Depth: 11.4 In (29 cm) Weight: 143 lbs (64.9 kg) Bias Flow 0–60 liters per minute (LPM) Continuous, 15-turn control. Resolution: 2.5 LPM. Accuracy: ±10% of full scale at the following conditions: air or oxygen @ 70°F and 760 Torr. Mean Pressure Adjust Approximately 3–55 cmH2O minimum range; Bias Flow dependent. Resolution: 0.1 cmH2O on airway pressure digital meter, 1-turn control. Accuracy: Non-calibrated control knob. Mean Pressure Limit Automatic Power At 100% power, ΔP >90 cmH20 max amplitude of proximal airway pressure. Resolution: Graduated 10-turn locking dial, not calibrated in % power. Frequency-Hz 3–15 Hz oscillator frequency. Resolution: 0.1 Hz on digital meter, 10-turn control. Accuracy: ±5% of full scale. % Inspiratory Time 30–50% of oscillatory cycle. Resolution: +/- 1% as read on digital meter Accuracy: ±5% of full scale. Set Max Paw Alarm Thumbwheel 0–59 cmH2O mean airway pressure. Resolution: 1 cmH2O Accuracy: Within ±2 cmH20. Set Min Paw Alarm Thumbwheel 0–59 cmH2O mean airway pressure. Resolution: 1 cmH2O. Accuracy: Within ±2 cmH20.
