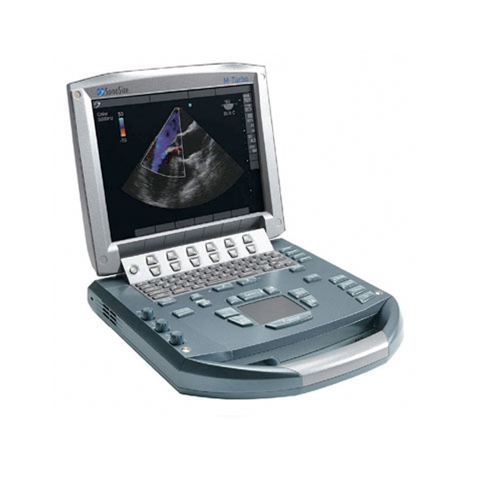

More Sonosite M-Turbo Pictures SonoSite M-Turbo - Soma Technology, Inc.SonoSite M-Turbo With Cart - Soma Technology, Inc.M-Turbo - Soma Technology, Inc. Sonosite M-Turbo Features: The SonoSite M-Turbo ultrasound system is a versatile, digital, and software controlled device. This portable and innovative system has numerous configurations and feature sets used to obtain and display real time, high-resolution ultrasound images used for abdominal, nerve, superficial, vascular, cardiac, venous access, and pelvic views. Sonosite M-Turbo Specifications: Imaging Modes and Processing Broadband, multi-frequency imaging. 2D/Tissue Harmonic Imaging/M-Mode. Velocity Color Doppler. Color Power Doppler. PW, PW Tissue Doppler, and CW. Doppler angle, correct after freeze. Image processing SonoADAPT™ Tissue Optimization. SonoHD™ Imaging. SonoMB® Multi-beam Imaging. Advanced Needle Visualization. Auto gain automatic image optimization. Dual Imaging. Duplex Imagine. 2x pan/zoom capability. Transducers Broadband and multifrequency. Linear Array, Curved Array, Phased Array, Multiplane TEE, and Micro-Convex. Single frequency Cardiac Static Pencil. USB Storage Formats MPEG-4 (H.264), JPEG, BMP, HTML. Compatible with Mac® and PC formats. User Interface and Remappable Controls Softkeys to drive advanced features. Programmable A and B keys: each can be assigned by the user for increased ease of use. Alphanumeric elastomeric QWERTY keyboard. Track pad with select key for easy operation and navigation. Doppler controls: angle, steer, scale, baseline, gain and volume Image acquisition keys: review, report, Clip Store, DVD, save. Dedicated AutoGain and exam keys to allow quick activation. Application-Specific Calculations Cardiac: Complete cardiac calculations package and patient report, including ventricular, aortic and atrial measurements, ejection fraction, volume, Simpson’s rule, continuity equation, pressure half-time, and cardiac output. OB/Gyn/Fertility: Diameter/ellipse measurements, volume, six follicle measurements, estimated fetal weight, established due date, gestational age, last menstrual period, growth charts, userdefined tables, multiple user-selectable authors, ratios, amniotic fluid index, patient report. Vascular: Diameter/ellipse/trace measurements, volume, volume flow, percent diameter and area reduction, Lt/Rt CCA, ICA, ECA, ICA/CCA ratio, time average mean (TAM), peak trace, ICA/CCA ratio, angle correction, patient report. IMT (Intima Media Thickness): Embedded SonoCalc® IMT software - automatic edge detection with mean and maximum thickness reporting. Onboard Image and Clip Storage/Review 8 GB internal Flash memory storage capability. Potential to store 30,000 images or 960 2-second clips. Clip Store capability. (maximum single clip length: 60 seconds.) Clip Store capability via either number of heart cycles (using the ECG) or time base. Maximum storage in ECG beats mode is 10 heart cycles. Maximum storage in time base mode is 60 seconds. Cine review up to 255 frame-by-frame images. Power Supply System operates via battery or AC power Rechargeable lithium-ion battery. AC: universal power adapter, 100-240 VAC, 50/60 Hz input, 15 VDC output. Measurement Tools, Pictograms, and Annotations 2D: Distance calipers, ellipses and manual trace. Doppler: Velocity measurements, pressure half time, auto and manual trace. M-Mode: Distance and time measurements, heart rate calculation. User-selectable text and pictograms. User-defined, application-specific annotations. Biopsy guidelines. External Data Management and Wireless DICOM® Image Management. (TCP/IP) Print and Store. Modality Work List. Storage Commit Modality Performed Procedure Step. SiteLink™ Image Manager functionality. SonoSite® Education Key™ training video compatible. SonoSite Workflow Solutions. SonoRemote™ Control – Bluetooth® wireless technology. External Video and Audio S-video (in/out) to VCR or DVD for record and playback. RGB or DVI output to external LCD display Composite video output (NTSC/PAL) to VCR or DVD, video printer or external LCD display. Audio output. Integrated speakers. Supported Peripheral Devices B/W video printer. DVD recorder. bar code reader Dimensions Weight: 6.7 lbs (3.04 kg) (without battery and transducer) Dimensions: 11.9” L x 10.8” W x 3.1” H (30.2 cm L x 27.4 cm W x 7.9 cm H) Display: 10.4” (26.4 cm) diagonal LCD (NTSC or PAL) Other Information Architecture: All-digital broadband multi-frequency imagining. Dynamic range: Up to 165 dB. Gray scale: 256 shades. HIPAA compliance: Comprehensive tool set.
