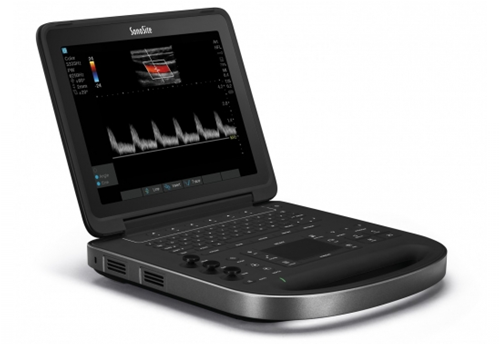

Sonosite Edge II Features The SonoSite EdgeII Ultrasound System offers you an enhanced imaging experience through industry first transducer innovations like DirectClear and Armored Cable Technology. And, because it is a SonoSite, the EdgeII stays true to our design pillars of durability, reliability, and ease of use. Optimized Imaging Experience DirectClear Technology is a novel, patent-pending process that elevates transducer performance: Improved penetration and contrast resolution: Unlike conventional SonoSite transducers, a more efficient material has been embedded into the design that allows for the generation of more acoustic signal. In parallel, a reflective layer has been added to reduce the loss of this signal, as it is transmitted into the patient. Sharpened detail resolution: An additional layer has been added to provide a better acoustic match between the transducer and the patient, increasing the ability to resolve small structures and aid in your diagnostic confidence. Elevated Color Sensitivity Through a dualflex and thin lens design, combined with new advancements in image optimization, the HFL38xi was enhanced to increase penetration, clarity and color sensitivity. You can now better visualize nerves and vessels, whether it be for procedural guidance or flow analysis. Sonosite Edge II Specifications Dimensions System weight 9.21 lbs/4.18 kg with battery Dimensions 12.8” x 12.1” x 2.5”/32.6 cm x 30.7 cm x 6.4 cm (L x W x H) Display 12.1”/30.7 cm diagonal LCD (NTSC or PAL) with chemicallyetchedglass layer Viewing Angles 85 degrees up/down/left/right Architecture All-digital broadband Dynamic Range Up to 165 dB Gray Scale 256 shades HIPAA compliance Comprehensive tool set Imaging Modes 2D / Tissue Harmonic Imaging / M-Mode Velocity Color Doppler / Color Power Doppler PW, PW Tissue Doppler and CW Doppler angle, correct after freeze Imaging Processing SonoADAPT™ Tissue Optimization SonoHD2™ Imaging Technology Dual Imaging, Duplex Imaging, 2x pan/zoom capability, Dynamic range and gain ColorHD™ Technology Steep Needle Profiling C35x - Nerve, MSK, Spine HFL38xi – Nerve, MSK, Breast, Small Parts, Arterial, Venous HFL50x – Nerve, MSK, Breast, Small Parts L25x – Nerve, MSK, Arterial, Venous HSL25x – Nerve, MSK, Arterial, Venous L38xi – Nerve rC60xi – Nerve, MSK User Interface & Remappable Controls Softkeys to drive advanced features Programmable A and B keys: each can be assigned by the user for increased ease of use Low profile keyboard, sealed completely to edge for maximum infection control Softkeys to drive advanced features Programmable A and B keys: each can be assigned by the user for increased ease of use Low profile keyboard, sealed completely to edge for maximum infection control Track pad with select key for easy operation and navigation Doppler controls: angle, steer, scale, baseline, gain and volume Image acquisition keys: review, report, clip store, save Dedicated AutoGain and exam keys to allow quick activation Color controls: size/position, angle, scale Transducers Broadband/Multifrequency DirectClear Technology (rC60xi, rP19x) Armored Cable Technology (Optional on rC60xi, rP19x, L38xi, L52x) Linear Array, Curved Array, Phased Array, Multiplane TEE and Micro-Convex Center line marker for linear transducers Transducer Exam Types abdominal, breast, cardiology, gyn, lung, musculoskeletal, neonatal, nerve, ob, ophthalmic, orbital, small parts, spine, superficial, TCD, arterial, venous Durability Drop-tested at 3 feet/91.4 cm Power Supply System operates via battery or AC power Rechargeable lithium-ion battery AC: universal power adapter, 100-240 VAC, 50/60 Hz input, 15 VDC output Less than 25 sec. from power-on to scanning
