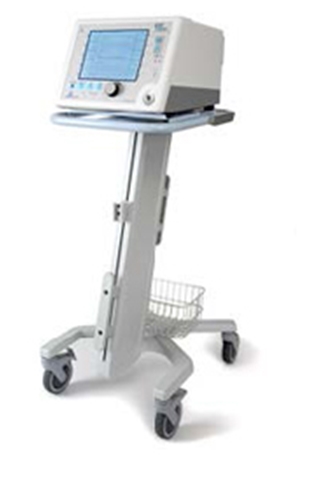

Philips Respironics BiPAP Vision Features Respironics Vision has an integrated Display Screen displays easy-to-read real time graphics in waveform or bar scale format, providing the following measured and calculated numerical values to assist with ventilator management: IPAP Total Breath Rate Exhaled Minute Ventilation % Patient Triggered Breaths Exhaled Tidal Volume EPAP Ti/Tot Peak Inspiratory Pressure Patient or Total Leak Integrated Display Screen Oxygen Control up to 100% Pressure Regulation at Mask BiPAP Auto-Trak Sensitivity Alarm Module Philips Respironics BiPAP Vision Specifications Modes CPAP Control Range: 4 to 20 cm H2O Control Increments: 1 cm H2O S/T Control Range: 4 to 40 cm H2O Control Increments: 1 cm H2O PAV/T Control Range: Quick Start Menu Control Increments: Obstructive, Restrictive, Mixed, Normal Control Ranges & Increments: Parameters IPAP Control Range: 4 to 40 cm H2O Control Increments: 1 cm H2O EPAP Control Range: 4 to 40 cm H2O Control Increments: 1 cm H2O CPAP Control Range: 4 to 40 cm H2O Control Increments: 1 cm H2O Rate Control Range: 4 to 40 BPM Control Increments: 1 BPM Timed Inspiration Control Range: 0.5 to 3.0 sec Control Increments: 0.1 sec IPAP Rise Time Control Range: 0.05 to 0.40 sec Control Increments: 4 set points: .05, .1, .2, .4 sec Oxygen Concentration (%O2) Control Range: 21 to 100% Control Increments: 4% from 21 to 25% 5% from 25 to 100% Control Ranges & Increments: Alarms High Pressure Control Range: 5 to 50 cm H2O Control Increments: 1 cm H2O Low Pressure Control Range: Disabled; 0 to 40 cm H2O Control Increments: 1 cm H2O Low Pressure Control Range: Delay 0 to 60 sec Control Increments: 1 sec Apnea Control Range: Disabled; 20 to 40 sec Control Increments: 4 set points: Disabled, 20, 30, 40 sec Low Minute Ventilation Control Range: Disabled; 1 to 99 L/min Control Increments: 1 L/min High Rate Control Range: 4 to 120 BPM Control Increments: 4 set points: 1 BPM Low Rate Control Range: 4 to 120 BPM Control Increments: 4 set points: 1 BPM Display Ranges & Increments IPAP Display Range: 0 to 50 cm H2O Display Resolution: 1 cm H2O EPAP Display Range: 0 to 50 cm H2O Display Resolution: 1 cm H2O CPAP Display Range: 0 to 50 cm H2O Display Resolution: 1 cm H2O Rate Display Range: 0 to 150 BPM Display Resolution: 1 BPM Exhaled Tidal Volume (VT) Display Range: 0 to 4000 ml Display Resolution: 1 ml Minute Ventilation (Min Vent) Display Range: 0 to 99 L/min Display Resolution: 1 L/min Total Leak (Tot Leak) Display Range: 0 to 300 L/min Display Resolution: 1 L/min Patient Lead (Pt. Leak) Display Range: 0 to 300 L/min Display Resolution: 1 L/min Peak Inspiratory Pressure (PIP) Display Range: 0 to 50 cm H2O Display Resolution: 1 cm H2O Percent of Pateint Triggered Breaths (Pt. Trig) Display Range: 0 to 100% Display Resolution: 1% Ti/Ttot Display Range: 0 to 100% Display Resolution: 1%
