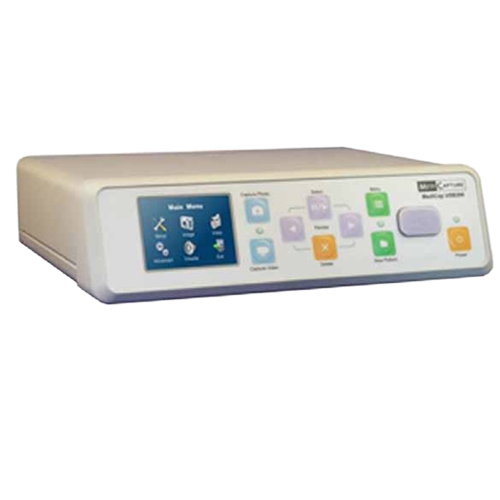

NAI DiCOM Features The DiCOM box CA+ Cine to DICOM is a universal DICOM interface that allows users to review dynamic images and cine loops outside the normal confines of modality workstations. The CA+ Cine to DICOM provides real time video acquisition and DICOM conversion from both monochrome and color video sources, capturing at least ten seconds of video data acquired at 30fps in RGB or 1K x 1K monochrome. Acquisition rates are selectable from 3.75 to 30 fps, and record modes include R wave trigger, prospective and retrospective. The CA+ Cine to DICOM simplifies the connectivity process and provides cine acquisition, lossless and lossy image compression, DICOM Store, Print, Performed Procedure Step and Storage Commitment for ultrasound fluoroscopic and cardiac angiographic systems. The NAI Dicom CA+ Cine to DICOM can be fully integrated to HIS/RIS. DICOM Print, DICOM Store. Modality Worklist. Modality Performed Procedure Step (MPPS). Storage Commitment. Real-time video acquisition up to 10 seconds RGB color or monochrome. Playback review through host display or attached VGA/NTSC display. DICOM compliant JPEG lossy compression or non-compressed transfer. Interlaced or non-interlaced video input. NAI DiCOM Specifications DiCOM Service Classes DICOM Print DICOM Store DICOM Modality Worklist Modality Performed Procedure Step Storage Commitment Storage Commitment Video Input (Terminated, 75 ohms) Monochrome composite video on Green input Red, Green, Blue (RGB) and composite sync TTL composite or seperate sync Nominal 525/625 lines 30/25 fps Interlaced or non-interlaced Pixel Clock Minimum: 7 MHz Pixel Clock Max: 40 MHz / RGB 120 MHz Monochrome Image Matrix Max: 1024 x 1024 Monochrome 800 x 600 RGB Video Output locked to video input, or VGA Video Acquisition Approximately 10 seconds at 30/25fps 384MB video acquistion RAM >30, 15, 10, 7.5, 6, 5, 4, 3 fps acquistion rates Image Review Configurable for image playback through host display Variable frame rate playback freeze frame to 30fps Network Image Compression Ethernet 10/100 base T - selectable JPEG lossy, or uncompressed Connectors Video I/O High Density DB15, Female pins Network: 8 pin modular jack (RJ45) Operator Interface Keypad; DB9, Male pins Host Control Input: DB9, Male pins Remote Capture Input: BNC, Female pins Power Input Module 115-230 Volts, +/- 15% 47-63 Hz, 120 VA Module Height: 3.25 inches (8.25 cm) Width: 10.125 inches (25.72 cm) Depth: 14.125 inches (35.88 cm) Weight: 8 pounds (3.68 kg) Keypad Height: 7.15 inches (18.16 cm) Width: 4.10 inches (10.41 cm) Depth: 0.95 inches (2.41 cm) Weight: 8 ounces, (227g) Environmental Operating Temperature: + 50°F to +104°F, (+10°C +40°C) Barometric pressure: 700 hPa to 1060 hPa Relative Humidity: 5% to 80% non condensing Transit Temperature: + 14°F to +122°F, (+10°C +50°C) Relative Humidity: 5% to 85% non condensing Clearance Requirements 3 inches (7.6cm) for rear panel cable connection Do not obstruct ventilation airflow at front and rear of module Agency Approvals / Classification UL 2601-1 IEC601-1 IEC601-1-2 CSA601.1 FCC part 15
