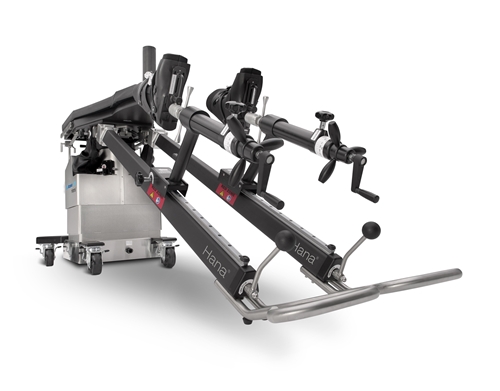

Mizuho OSI Hana Features The Mizuho OSI Hana® is a state of the art fracture table that optimizes the Anterior Approach to Total Hip Arthroplasty (AATHA). Its unique patient positioning capabilities enable the surgeon to replace the hip through a single incision, Anterior Approach without detachment of muscle from the pelvis or femur. Carbon Fiber Table Top Auxiliary Control Manual Floor Locks Physician Controlled Foot Pedal Accessory Side Rails Stainless Steel Base Lightweight Spars AC or Battery Operation Replaceable Control Module Spherical Spatial Positioning System SSPS Mizuho OSI Hana Specifications Dimensions Table top length: 48.5 in. (123 cm) Table length w/ spars: 124 in. (315 cm) Table top width: 21.5 in. (55 cm) 10in. (25 cm) near perineal post Table top to height range: 30 – 50 in. (76 – 127 cm) Patient weight capacity: 450 lbs. (205 kg) General Power Requirements 100V 50/60Hz; 120V 60Hz; 220/230V 50/60Hz Trendelenburg / Reverse Trendelenburg: 12° Lateral tilt: 12° Leg spar articulation: 28° up, 35° down, 20° adduction, 45° abduction
