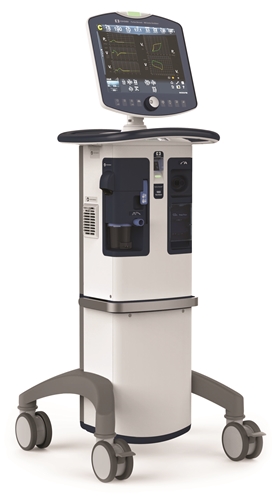

Medtronic Puritan Bennett 980 Ventilator
Additional Information
Medtronic Puritan Bennett 980 Features The Medtronic PB 980 Ventilator has a touch screen display and hot swappable batteries. Ventilation assurance feature: in the event of certain system failures, the ventilator will continue to deliver ventilatory support as close to the preset settings as feasible. Proximal flow sensor measures flow, pressure and tidal volume right at the patient wye in neonate applications. PAV+ software better manages the work of breathing in spontaneously breathing patients and promotes natural breathing. With PAV+ breath type, the patient defines rate, depth and timing. The software continuously monitors patient demand by measuring flow and volume every 5 milliseconds. Modes: Assist/Control (A/C), Synchronized Intermittent Mandatory Ventilation (SIMV), Spontaneous (SPONT), BiLevel 2.0 or Continuous Positive Airway Pressure. (CPAP). Mandatory breath types: Volume Control (VC), Pressure Control (PC) or Volume Control Plus. (VC+). Spontaneous breath types: Pressure Support (PS), Volume Support (VS), Proportional Assist Ventilation Plus (PAV+) and Tube Compensation. Medtronic Puritan Bennett 980 Specifications Physical Specifications Weight General: 113 lb (51.26 kg) including BDU, standard base, GUI and primary battery. BDU only: 69 lb (31.3 kg) Ventilator dimensions 12.5” width x 11.5” depth x 58” height (32 cm width x 30 cm depth x 148 cm height). (including GUI screen). Graphical User Interface Dimensions 15” (38.1 cm) screen, rotates 170° and tilts up to 45° from vertical. A-weighted sound pressure level, ventilator At a distance of one (1) meter, does not exceed 48 dBA at 5 L/min. Oxygen and Air Inlet Supplies Pressure: 241 to 600 kPa (35 psi to 87 psi) Maximum of 200 L/min. A-weighted Sound Pressure Level and Ventilator At a distance of one (1) meter, does not exceed 48 dBA at 5 L/min. Gas mixing system Up to 80 L/min for pediatric circuit type. Up to 150 L/min for adult patients. Additional flow is available (peak flow to 200 L/min) for compliance compensation. Oxygen Sensor Life Up to one year; operating life varies depending on oxygen usage and ambient temperature.
